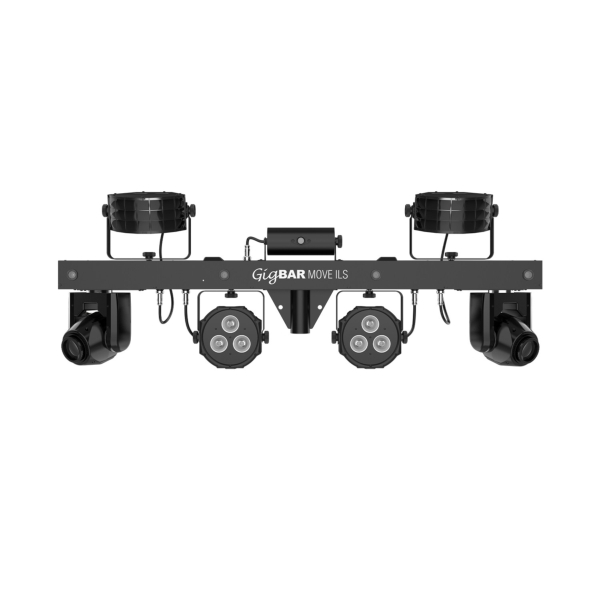

Chauvet DJ GigBAR Move ILS Portable Lighting Pack

Chauvet DJ GigBAR Move ILS Portable Lighting Pack Features

- 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
- Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
- Use the included RF remote to trigger the built-in shows without needing line of sight
- Separate colour and gobo wheels in moving heads allow for creative programming
- Totem Mode keeps the moving heads focused on the dance floor
- Easy navigation and access to all functions, directly from the full-colour LCD display
- Safely mounts to truss or ceilings using the 3/8 in threaded inserts
- System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
- Built-in UV LEDs illuminate fluorescent objects and make them pop
- Individual control of each effect ensures your show looks the way you need it to
- Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Chauvet DJ GigBAR Move ILS Portable Lighting Pack Specifications

- DMX Channels: 3, 27 or 46
- DMX Connectors: 3- pin XLR
- Power Linking: 7 units @ 120 V; 12 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 79 W, 0.6 A @ 230 V, 50 Hz
- Approvals: CE, RoHS, UKCA, FDA, FCC
- Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
- Tripod leg width: 3.9 ft (1.2 m)
- Footswitch Operating Frequency: 433 MHz
- Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
- Footswitch battery: 9 V alkaline
- Included Controllers: RF remote, wireless footswitch
- Fits Tripod Size: 1.5 in (37.4 mm)
- Strobe Rate: 0 to 20 Hz

Moving Heads:
- Pan and Tilt: 540°/180°
- Colors:: 7 + white, continuous scroll at variable speeds
- Gobos: 7 + open, continuous scroll at variable speeds

Light Source:
- Pars: 3 LEDs (quad-color RGB+UV) 3.5 W (1 A), 50,000 hours life expectancy
- Strobe: 4 LEDs (white & UV) 5 W (1 A), 50,000 hours life expectancy
- Derby: 6 LEDs (2 red, 2 green, 2 blue) 1 W (1 A), 50,000 hours life expectancy
- Moving head: 1 LED (cool white) 10 W (2.3 A), 50,000 hours life expectancy
- Laser: 650nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode

Beam Angle:
- Moving head: 11°
- Pars: 19°
- Strobe: 8°

Field Angle:
- Pars: 30°
- Strobe: 18°

Coverage Angle:
- Derby: 131°
- Laser: 93°

Illuminance:
- Pars: 1,205 lux @ 2 m (per par)
- Moving head: 1056 lux @ 2 m (per head)
- Strobe: 86 lux @ 2 m (per LED)

Physical:
- Dimensions (W x H x D): 449 x 1100 x 144 mm
- Weight: 10.7 kg

Chauvet DJ GigBAR Move ILS Portable Lighting Pack Supplied With

- Chauvet GigBAR Move ILS
- Power cord
- Carrying bag
- Tripod
- Footswitch
- RF Remote
- Quick Reference Guide
