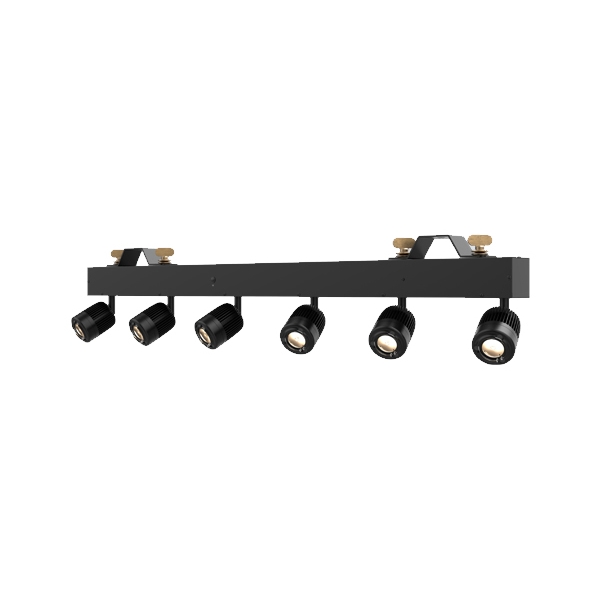

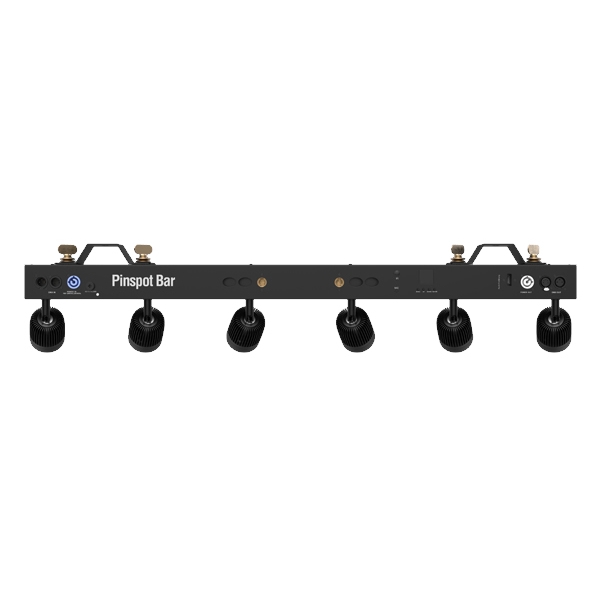

Chauvet DJ Pinspot Bar

Chauvet DJ Pinspot Bar Features

- High-output bar with 6 independent pinspots designed to replicate traditional incandescent lamps
- No messy cables ensure a clean and elegant look for any upscale event
- Independent control of each head offers true flexibility and programming capabilities
- Includes various beam diffusers and 2700 K filters to help achieve the desired look
- Control via the on-board digital display, DMX, a wireless IRC-6 remote or D-Fi USB dongle
- A pair of included Omega brackets allow for multiple mounting options including pipe and drape
- PowerCon compatible power input and power linking saves time running cables
- Flicker-free operation suitable for on-camera use

Chauvet DJ Pinspot Bar Specifications

- DMX Channels: 1, 6 and 11
- DMX Connectors: 3- and 5-pin XLR
- Light Source: 6 LEDs (warm white) 15 W, (3.6 A), 50,000 hours life expectancy
- PWM Frequency: 1000 Hz
- Beam Angle: 5°
- Field Angle: 11°
- Illuminance: 7,707 lux @ 2 m (per pod)
- Power Linking: 8 units @ 120 V; 13 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
  - 171 W, 1.4 A @ 120 V, 60 Hz
  - 191 W, 0.8 A @ 230 V, 50 Hz
- Weight: 9.4 lb (4.3 kg)
- Size: 39 x 4.6 x 5 in (1000 x 119 x 131 mm)
- Approvals: CE, RoHS
- Color Temperature: 4000 K
- CRI: 81
- Bracket Mounting Hole: 13 mm
- Optional Controllers: IRC-6, D-Fi USB

Further Product Information Below

Chauvet Pro Pinspot Bar Manual (PDF)

Chauvet Pro Pinspot Bar Quick Reference Guide (PDF)

Chauvet DJ Pinspot Bar Supplied With

- Pinspot Bar
- Power cord
- 2x Omega Brackets
- 6x 10° diffusers
- 6x 20° diffusers
- 6x 2700 K CTO filters
- Quick Reference Guide
