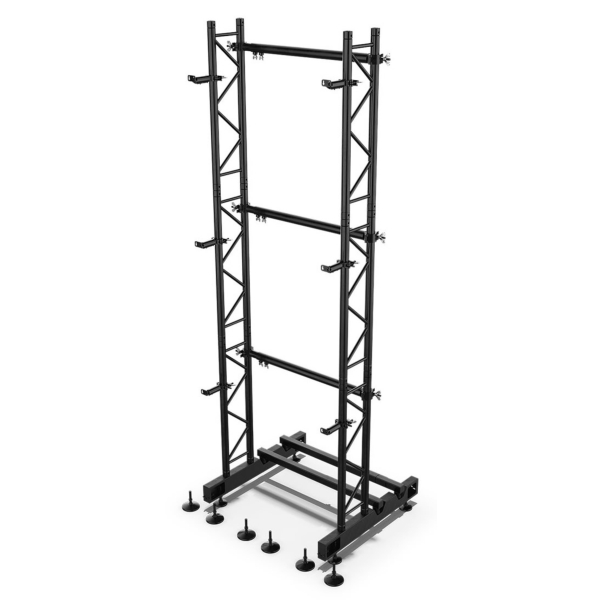

Chauvet Pro Video Wall Ground Support 2 KIT

Chauvet Pro Video Wall Ground Support 2 KIT Features

- Complete ground support solution for stacking video wall on the floor
- Works for walls between 4.92 ft (1.5 m) and 8.2 ft (2.5 m) wide and as high as 9.85 ft (3 m) tall; combine additional groundsupport2kits to achieve wider walls
- Use multiple kits to stack wider video walls
- Support for flat and concave video walls, including 5° and 10° curves
- Designed to work with the F2, F3, F4IP, F5IP, and Vivid 4 video panels
- Ships in road case for easy setup and pack after the gig
- DRB-F100CM, DRB-F50CM dual function rig bars required for operation (not included with groundsupport2kit)

Chauvet Pro Video Wall Ground Support 2 KIT Specifications

Physical:
- Dimensions: 10.24 x 3.28 x 3.28 ft (3.12 x 1 x 1 m)
- Weight (total with case): 322 lb (146 kg)
- Weight (ground support without case): 165 lb (74 kg)
- Weight (empty case): 157 lb (71 kg)
- Exterior Color: Black
- Housing Material: Aluminum extrusion and Steel
- Maximum vertical stack supported: 3 m tall
- Minimum width supported: 1.5 m wide
- Ballast needed per 1 M height stack: 100 lb (45 kg)
- Ballast needed per 2 M height stack: 175 lb (80 kg)
- Ballast needed per 3 M height stack: 250 lb (113.4 kg)

Certifications:
- CE
- IP Rating: IP20 (dry location)
- Temperature (Ambient): -4 °F to 140 °F (-20 °C to 60 °C)

Further Product Information Below

Chauvet Pro Video Wall Ground Support Data Sheet (PDF)
