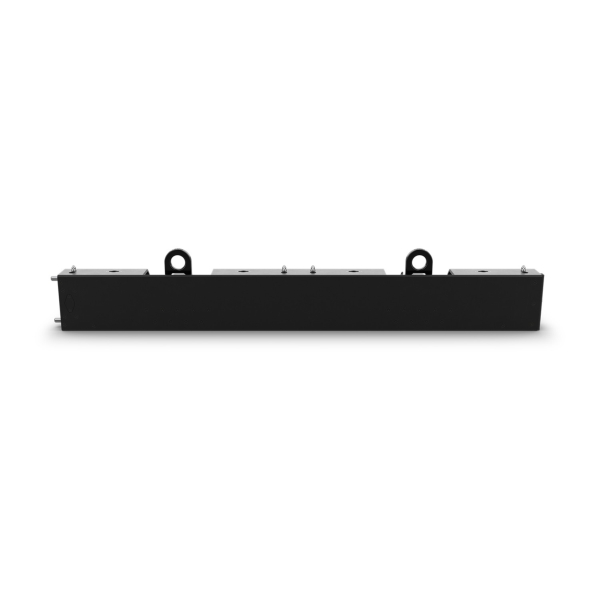

Chauvet Pro REMRB100CMIP Dual-Function Rig Bar for REM-Series LED Video Panels - IP65

Chauvet Pro REMRB100CMIP Dual-Function Rig Bar for REM-Series LED Video Panels Features

- REM Rig Bar, used for both overhead hanging and ground stacking
- Works with CHAUVET REM video panels
- Equipped hoist ring supports standard rigging hardware for overhead hanging (½-inch, ⅝-inch shackles)
- Included Clamp attachment bracket (DRB-CTC) allows for direct connection using M12 bolts in clamps using TRUSST CTC-50HC
- Aluminum extrusion, stainless steel

Chauvet Pro REMRB100CMIP Dual-Function Rig Bar for REM-Series LED Video Panels Specifications

- Load Capacity:
  - Hanging: 776 kg (1,710.8 lbs)
  - Stacking: 795 kg (1,752.70 lbs)
- Recommended Shackle Sizes: ½-inch, ⅝-inch
- IP Rating: IP65, temporary outdoor/wet use

Physical:
- Dimensions: 999.6 x 60 x 120 mm (39.35 x 2.36 x 4.72 inches)
- Weight: 7.62 kg (16.8 lbs)
- Exterior Color: Black
- Housing Material: Aluminum extrusion, stainless steel

Further Product Information Below

Chauvet Pro REM Rig Bar 100CM Manual (PDF)

Chauvet Pro REM Rig Bar 100CM Quick Reference Guide (PDF)

Chauvet Pro REM1SQ Quick Reference Guide (PDF)

Chauvet Pro REMRB100CMIP Dual-Function Rig Bar for REM-Series LED Video Panels Supplied With

- 1x Chauvet REM Rig Bar-100 cm (REM-F100CMIP)
- 2x clamp attachment brackets (DRB-CTC)
- 2x clamp bolts for TRUSST CTC-50HC
