Chauvet Pro REM3IPSQ LED Video Panel, 3.9mm Pixel Pitch / 4500 NITS - IP65 (Pack of 8)

Chauvet Pro REM3IPSQ LED Video Panel Features

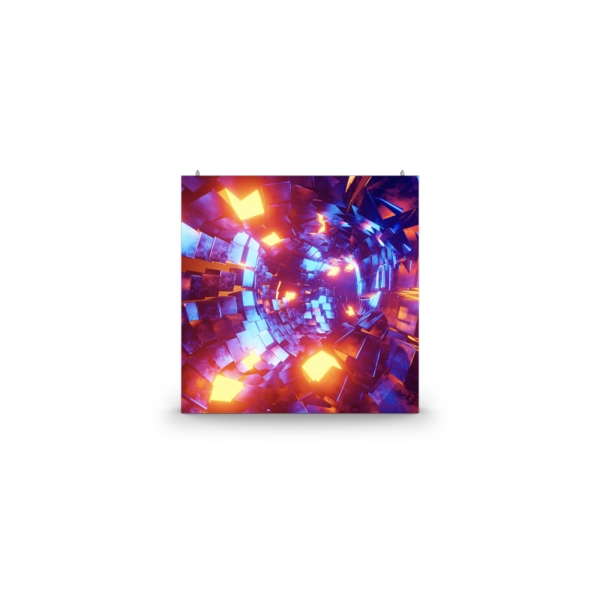

- 3.9 mm pitch, ultra-high resolution, indoor/outdoor video panel in convenient 500 mm (tall) by 500 mm (wide) form factor.
- Map and scale your wall with the Novastar MX40 Pro sender
- Operating in the DCI-P3 color space and driven via the premium A10s Pro receiver card from Novastar, black body LEDs accurately reproduce video at 22-bit+ grayscale and a wide color gamut
- High performance LED drivers deliver 7,680 Hz refresh rate for camera-friendly operation in high-demand applications
- Hot-swap magnetic LED modules with onboard factory calibration storage offers chroma, brightness, and the new thermal calibration for premium performance and uniformity of the panels

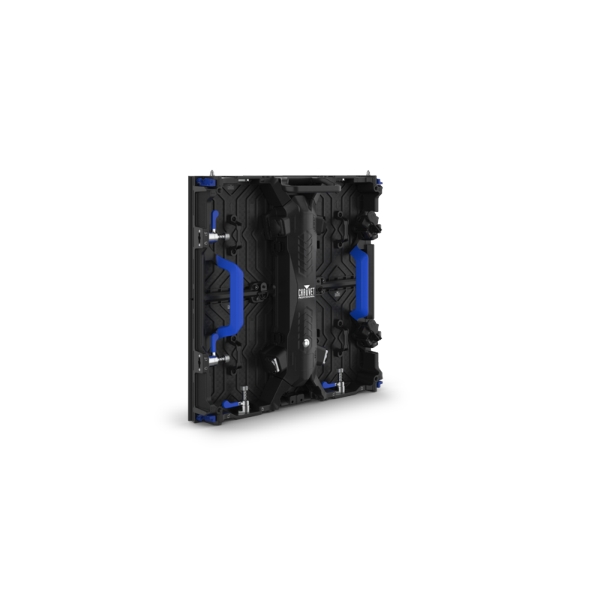

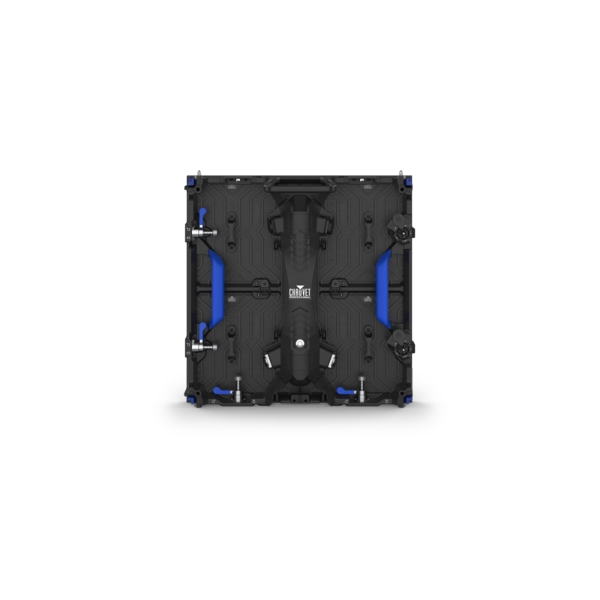

- Specialized frame design allows for overhead hanging, ground stacking, and wall mounting, which maximizes the design for multiple applications
- Corner protectors and specialized LED board design offers impact resistance up to 3x that of other panels, and resilient led mask design optimizes viewing angle and uniformity without exposing the LEDs to front or side impacts
- Strong, magnetic assisted hanging makes setting up the panels fast and easy with minimal crew
- Specialized anti-reflective coating applied to the front of LED modules ensures optimal viewing comfort
- Ground support system available

Chauvet Pro REM3IPSQ LED Video Panel Specifications

Optical:
- Light Source: 32,768 LEDs (tri-color RGB) SMD 1921, 50,000 hours life expectancy
- Color Wavelength: red (620 to 625 nm), green (512 to 532 nm), blue (460 to 475 nm)
- Color Space: DCI-P3
- Viewing Angle (H/V): 140°/140°
- Calibrated Illuminance: 4,500 NITS
- Maximum Illuminance: >5,000 NITS
- Contrast Ratio: 18,500:1
- Grayscale: 22-bit+
- Receiver Card : A10s Pro
- Drive Type : 1/16
- Pixels: 128 x 128
- Pixel Pitch: 3.9 mm
- Minimum Viewing Distance: 7.5 ft (2.3 m)
- Pixel Density: 65,536/m2
- Display Refresh Rate: 7,680 Hz (S-PWM)

Connections:
- Power Connection: Edison (local) plug to Seetronic powerKON
- Power Input: Seetronic powerKON
- Power Output: Seetronic powerKON
- Data Connectors: Seetronic etherKON
- Cable Length:
  - Signal extension: 4 ft (1.2 m)
  - Power: 4 ft (1.2 m)
  - Power extension: 6 ft (1.8 m)

Control:
- Control Protocol: Novastar VMP platform
- Recommended Processor/Driver: Novastar MX40 Pro (JP108813)
- Panel Resolution (L x H): 128 x 128
- Maximum Panels/Novastar MX40 Pro (20 ports):
- HDR off, 24 Hz 8-bit video source: 100/port, up to 2,000/Processor/Sender 10-bit video source: 75/port, up to 1,500/Processor/Sender 12-bit video source: 50/port, up to 1,000/Processor/Sender
- HDR off, 30 Hz 8-bit video source: 80/port, up to 1,600/Processor/Sender 10-bit video source: 60/port, up to 1,200/Processor/Sender 12-bit video source: 40/port, up to 800/Processor/Sender
- HDR off, 60 Hz 8-bit video source: 40/port, up to 800/Processor/Sender 10-bit video source: 30/port, up to 600/Processor/Sender 12-bit video source: 20/port, up to 400/Processor/Sender
- HDR off, 120 Hz 8-bit video source: 20/port, up to 400/Processor/Sender 10-bit video source: 15/port, up to 300/Processor/Sender 12-bit video source: 10/port, up to 200/Processor/Sender
- HDR off, 144 Hz 8-bit video source: 16/port, up to 320/Processor/Sender 10-bit video source: 12/port, up to 240/Processor/Sender 12-bit video source: 8/port, up to 160/Processor/Sender
- Maximum Panels Tall/ Novastar MX40 Pro: (adjust input/source resolution as needed): 8 @ 1080 height 10 @ 1344 height 13 @ 1680 height 16 @ 2160 height
- Maximum Panels Wide/ Novastar MX40 Pro: (adjust input/source resolution as needed): 15 @ 1920 wide resolution 30 @ 3840 wide resolution 64 @ 8192 wide resolution

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 11 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
- Power and Current: 150 W, 0.65 A @ 230 V, 50 Hz

Certification / Qualification:
- CE, MET, FCC
- MET Listing Number: E113093-1110, E113093-1125
- US Safety: UL 60950-1
- Canadian Safety: CSA C22.2 No. 60950-1
- IP Rating: IP65, dry location
- Thermal Dissipation @ 230V: 511 BTU per hour
- Operating Temperature: -4 °F to 113 °F (-20 °C to 45 °C)

Physical:
- Dimensions: 19.69 x 39.37 in (500 x 1000 mm)
- Weight: 18.2 lb (8.26 kg)
- Threaded Bolt: M10, 1.5
- Exterior Color: Black
- Housing Material: Aluminum ADC12
- LED Module Material: Glass filled Polycarbonate
- Maximum vertical hang: 11 panels

Further Product Information Below

Chauvet Pro REM3IPSQ Data Sheet (PDF)

Chauvet Pro REM3IPSQ Quick Reference Guide (PDF)

Chauvet Pro REM3IPSQ LED Video Panel Supplied With

- 8x Chauvet REM3IPSQ
- 1x Seetronic powerKON power cord
- 8x Seetronic powerKON power linking cords
- 8x Seetronic etherKON signal linking cords
- 5x spare LED masks
- User Manual
