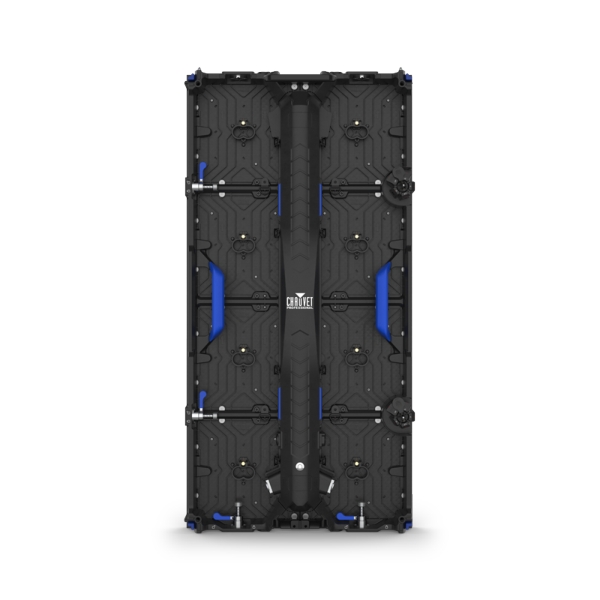

Chauvet Pro REM1 LED Video Panel 1.9mm Pixel Pitch / 1000 NITS (Pack of 4)

Chauvet Pro REM1 LED Video Panel Features

- 1.9 mm pitch, ultra-high resolution, modular, indoor video panel
- Map and scale your wall with the Novastar MX40 Pro sender
- Universal, magnetic LED modules for easy replacement and servicing
- Magnetic-assisted hanging integrated into frames makes building a screen fast and easy with minimal labor/effort required
- REM1 offered in two physical sizes: 1 m x 0.5 m, 0.5 x 0.5 m (special order)
- Integrated curving capabilities for concave and convex configurations
- Spring-loaded corner protection for safe transportation and handling
- Operating in the DCI-P3 color space and driven via the premium A10s Pro receiver card from Novastar, black body LEDs accurately reproduce video at 22-bit+ grayscale and a wide color gamut
- High performance LED drivers deliver 7,680 Hz refresh rate for camera-friendly operation in high-demand applications
- Low latency and HDR10 supported for VR/XR studio, live applications
- Design allows for overhead hanging, ground stacking, and wall mounting, maximized for multiple applications
- Specialized anti-reflective coating applied to the front of LED modules ensures optimal viewing comfort
- Ground support/stacking system available in scalable road case (JP101615)

Chauvet Pro REM1 LED Video Panel Specifications

Optical:
- Light Source: 131,072 LEDs (tri-colour RGB) SMD 1212, 100,000 hours life expectancy
- LED Colour Wavelength: red (620 to 625 nm), green (510 to 535 nm), blue (485 to 475 nm)
- Colour Space: DCI-P3
- Viewing Angle (H/V): 140°/140°
- Calibrated Illuminance: 800 NITS (calibrated)
- Maximum Illuminance: >1,000 NITS (calibration disabled)
- Grayscale: 22-bit+
- Receiver Card: A10s Pro
- Drive Type: 1/21
- Pixels: 256 x 512
- Pixel Pitch: 1.9 mm
- Minimum Viewing Distance: 7.5 ft (2.3 m)
- Pixel Density: 262,144/m2
- Display Refresh Rate: 7,680 Hz (S-PWM)

Connections:
- Power Connection: Edison (local) plug to Seetronic powerKON
- Power Input: Seetronic powerKON
- Power Output: Seetronic powerKON
- Data Connectors: Seetronic etherKON
- Cable Length:
  - Signal extension: 4 ft (1.2 m)
  - Power: 4.6 ft (1.4 m)
  - Power extension: 6 ft (1.8 m)

Control:
- Control Protocol: Novastar VMP platform
- Required Software: Nova VMP
- Controller (required): Novastar MX40 Pro (JP108813)
- Recommended Processor/Driver: Novastar MX40 Pro
- Panel Resolution (L x H): 256 x 512
- Maximum Panels/Novastar MX40 Pro (20 ports):
- HDR off , 24 Hz
  - 8-bit video source: 12/port, up to 240/Processor/Sender
  - 10-bit video source: 9/port, up to 180/Processor/Sender
  - 12-bit video source: 6/port, up to 120/Processor/Sender
- HDR off , 30 Hz
  - 8-bit video source: 7/port, up to 140/Processor/Sender
  - 10-bit video source: 7/port, up to 140/Processor/Sender
  - 12-bit video source: 5/port, up to 100/Processor/Sender
- HDR off , 60 Hz
  - 8-bit video source: 5/port, up to 100/Processor/Sender
  - 10-bit video source: 3/port, up to 60/Processor/Sender
  - 12-bit video source: 2/port, up to 40/Processor/Sender
- HDR off , 120 Hz
  - 8-bit video source: 2/port, up to 40/Processor/Sender
  - 10-bit video source: 1/port, up to 20/Processor/Sender
  - 12-bit video source: 1/port, up to 20/Processor/Sender
- HDR off , 144 Hz
  - 8-bit video source: 2/port, up to 40/Processor/Sender
  - 10-bit video source: 1/port, up to 20/Processor/Sender
  - 12-bit video source: 1/port, up to 20/Processor/Sender
- Maximum Panels Tall/ Novastar MX40 Pro: (adjust input/source resolution as needed):
  - 2 @ 1080 height
  - 3 @ 1344 height
  - 3 @ 1680 height
  - 4 @ 2160 height
- Maximum Panels Wide/ Novastar MX40 Pro: (adjust input/source resolution as needed):
  - 7 @ 1920 wide resolution
  - 15 @ 3840 wide resolution
  - 32 @ 8192 wide resolution

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 7 units @ 120 V; 12 units @ 208 V; 14 units @ 230 V
- Power and Current: 240 W, 1.04 A @ 230 V, 50 Hz

Certification / Qualification:
- CE, MET, FCC
- MET Listing Number: E113093-1110, E113093-1125
- US Safety: UL 60950-1
- Canadian Safety: CSA C22.2 No. 60950-1
- IP Rating: IP30, dry location
- Thermal Dissipation @ 230V: 819 BTU per hour
- Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)

Physical:
- Dimensions: 19.69 x 39.37 in (500 x 1000 mm)
- Weight: 31.2 lb (14.15 kg)
- Threaded Bolt: M10, 1.5
- Exterior Colour: Black
- Housing Material: Aluminium ADC12
- LED Module Material: Glass filled Polycarbonate
- Maximum vertical hang: 11 panels

Further Product Information Below

Chauvet Pro REM1 Manual (PDF)

Chauvet Pro REM1SQ Data Sheet (PDF)

Chauvet Pro REM1 Quick Reference Guide (PDF)

Chauvet Pro REM1 LED Video Panel Supplied With

- 4x Chauvet REM 1
- 1x Seetronic powerKON power cord
- 4x Seetronic powerKON power linking cords
- 4x Seetronic etherKON signal linking cords
- 5x spare LED masks
- User Manual
