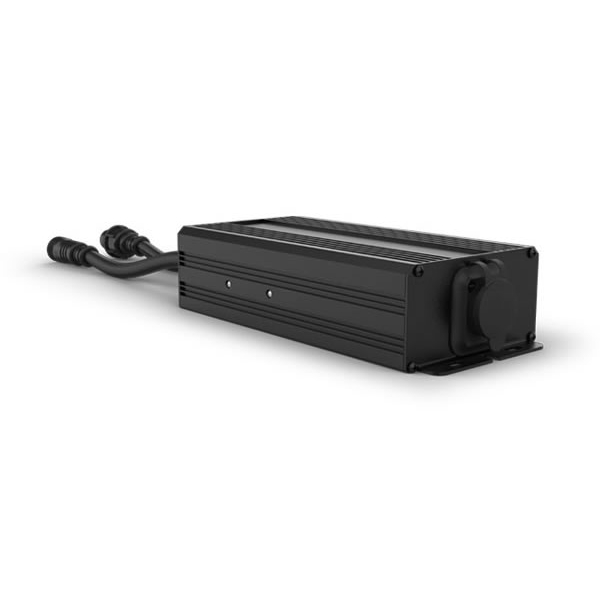

Chauvet Pro ÉPIX Flex Boost LED Strip Control Signal Booster, IP65

Chauvet Pro ÉPIX Flex Boost LED Strip Control Signal Booster Features

- IP65 outdoor rated in-line voltage booster for ÉPIX Flex 20
- Works when connected to the outputs of the ÉPIX Flex Driver

Chauvet Pro ÉPIX Flex Boost LED Strip Control Signal Booster Specifications

Construction / Physical:
- Dimensions: 8.13 x 3.56 x 1.83 in (206.5 x 46.5 x 90.5 mm)
- Weight: 4.4 lb (2 kg)
- Exterior Color: Black
- Housing Material: Aluminum

Connections:
- Connection: Edison (Local) plug to PowerCON IP65
- Power Input: PowerCON IP65
- Device inputs: (1) 3-pin male IP Flex
- Device Outputs: (1) 3-pin female IP Flex
- Physical Linking: 2 inline ÉPIX Flex 20
- Cable Length
  - Signal: 1.16 ft (0.355 m)
  - Power: 5 ft (1.5 m)

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
  - 200 W, 1.6 A @ 120 V, 60 Hz
  - 200 W, 0.87 A @ 230 V, 50 Hz

Certifications / Qualifications:
- CE, MET
- IP Rating: IP65, outdoor/wet, with pressure equalizing M14 GORE valve
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
- MET Listing Number: E114016-1144
- US Safety: UL 8750
- Canadian Safety: CSA C22.2 No. 250.13-12

Further Product Information Below

Chauvet Pro EPIX Flex Boost Data Sheet (PDF)

Chauvet Pro EPIX Flex Boost Quick Reference Guide (PDF)

Chauvet Pro ÉPIX FLEX Connection Guide (PDF)

Chauvet Pro ÉPIX Flex Boost LED Strip Control Signal Booster Supplied With

- Accessories (required): ÉPIX Flex Drive
- Compatible Mounting Options: M12 Bolt/Clamp
