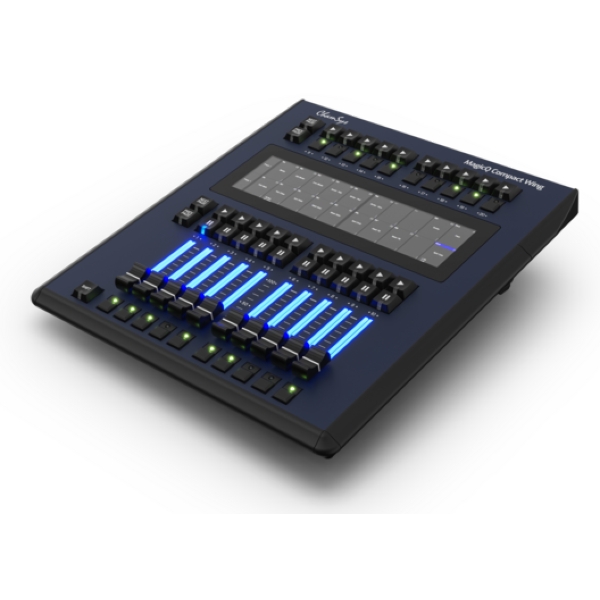

ChamSys MagicQ Compact Wing USB Lighting Control Interface

ChamSys MagicQ Compact Wing USB Lighting Control Interface Features

- 20 Playbacks with 10 Fader and 10 Executable playbacks
- Large full-colour high-resolution display for fully electronic playback legending
- Scalable system expansion via integrated USB hub for connecting multiple wings
- 10 Fader Playbacks
- 10 Execute Playbacks
- Full Colour Touch-Screen Attribute Display
- Connect to MagicQ Compact and Full Size Consoles
- Connect to MagicQ PC or MacOS Systems
- Up to 2 Compact Wings per System
- Separate Page/Up Down buttons
- USB Connection
- Dimmable Dual Colour Working Light

ChamSys MagicQ Compact Wing USB Lighting Control Interface Specifications

Hardware Specification:
- Fader Playbacks: 10
- Executor Playbacks: 10
- Total Number of Playbacks: 20
- Touch-Screen Display: Yes
- Electronic Playback Legends: Yes
- USB Ports: 3 (1 USB-C In, 2 USB A Out)
- Kensington Security Lock Fixing: Yes
- Working Light Port: Yes
- Power Input: PowerCon True1 100-240 VAC

Software Specifications (When used with PC Systems):
- Universes: 64
- Max Number of DMX Channels: 32768
- Max Number of Fixtures Supported: 32768
- Max Number of Cues: 5000
- Max Number of Cue Stacks: 2000
- Max Number of Groups: 5000
- Max Number of Palettes: 4096
- Number of Media Server Layers Supported: 50 (Each different content)

Physical:
- Dimensions (W x H x D): 350 x 60 x 314 mm
- Weight: 4 kg

Further Product Information Below

ChamSys MagicQ Compact Connect Manual (PDF)

ChamSys MagicQ Compact Wing Data Sheet (PDF)

ChamSys MagicQ Compact Wing USB Lighting Control Interface Supplied With

- 1x USB A-C Cable
- 1x Dual Colour Working Light
- 1x Dust Cover
- 1x PowerCon True1 Mains Cable
