ChamSys MagicDMX Basic USB Interface (Pack of 10)

Name: ChamSys MagicDMX Basic USB Interface (Pack of 10)
Brand: ChamSys
Price: 295.78 GBP
Availability: InStock

Price Per Pack of 10 £246.48 (£295.78 Including VAT at 20%)

REF: JP108362

Quantity:

ChamSys MagicDMX Basic USB Interface (Pack of 10)

The ChamSys MagicDMX Basic USB Interface is aimed at users wishing to evaluate and learn MagicQ, technicians wishing to test fixtures, as well as students wishing to learn lighting in schools and colleges. MagicDMX Basic supports output of a full DMX universe via a 3 pin female XLR connector.
MagicDMX Basic is time limited to 5 hours continuous usage. After this time it is necessary to replug the device and to restart the MagicQ software.
MagicDMX is an economic, single universe USB to DMX interface in two versions, Basic and Full. It is designed to be used with the free MagicQ software as a way to practice programming and demo the MagicQ software using actual moving lights.; Time limited to 5 hours session usage. After this time - replug the device and restart MagicQ software to enable another 5 hr max session.

Click Here for Printer Friendly Version

ChamSys MagicDMX Basic USB Interface Features

- One Universe DMX output
- 3 pin female XLR
- USB-C connector
- Max session 5 hrs
- Basic electrical protection
- LED status indicator

ChamSys MagicDMX Basic USB Interface Specifications

Hardware Specifications:
- DMX Port(s): 1
- RDM Support: No
- USB Port(s): 1 (USB-C)
- Unlocks 'demo mode features: No
- Time Restriction: 5 hours per session

Software Specifications:
- Universes: 64
- Channels: 32,768
- Number of fixtures: upto 32,768
- Cues: 5000
- Cue stacks: 2000
- Palettes: 4096
- Groups: 5000
- Media server support: 50 (each different content)

MagicQ features restricted when using MagicDMX Interfaces:
- Execute Window full screen
- Scheduled Events and Automations
- iOS / Android Remote app
- 10Scene Gateway and 10Scene remote app
- Remote Control Protocol (serial, or network)
- Web Server editing (viewing is supported)
- Auto starting Playbacks
- Startup in full screen / saved window positioning
- Playback Synchronisation
- Multi Programming including Net Sessions
- Triggering of playbacks using DMX input
- Mouse control of pan/tilt (only supported when connected to a MagicQ Wing with encoders)
- Audio control and playback synchronisation with Winamp (this is supported when connected via network to a MagicQ console)
- Timecode receive from ArtNet
- Midi Notes & Timecode from 3rd Party USB/Virtual interfaces.
- Audio input from PC/Mac sound card

Physical:
- Dimensions (W x H x D): 135 x 38 x 93 mm
- Weight: 0.1 kg

Further Product Information Below

ChamSys MagicQ Manual (PDF)

ChamSys MagicDMX Basic Data Sheet (PDF)

ChamSys MagicDMX Basic USB Interface Supplied With

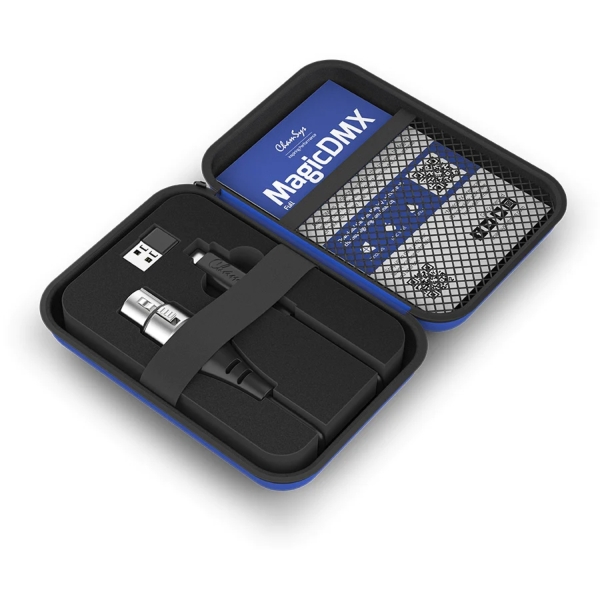

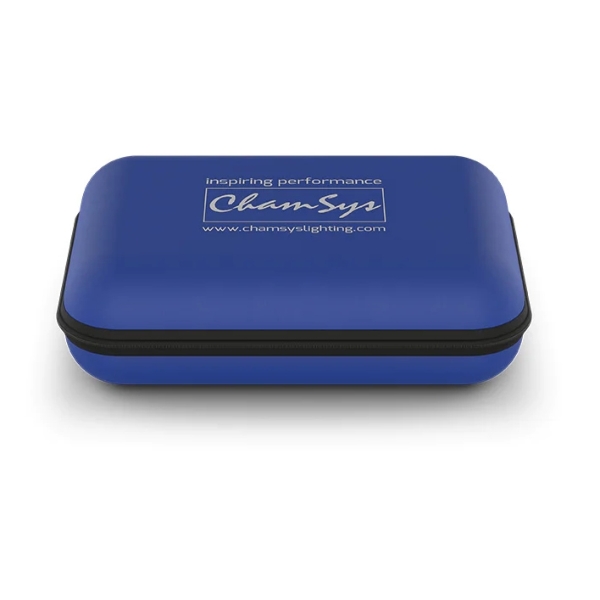

- Soft Shell Carry Case
