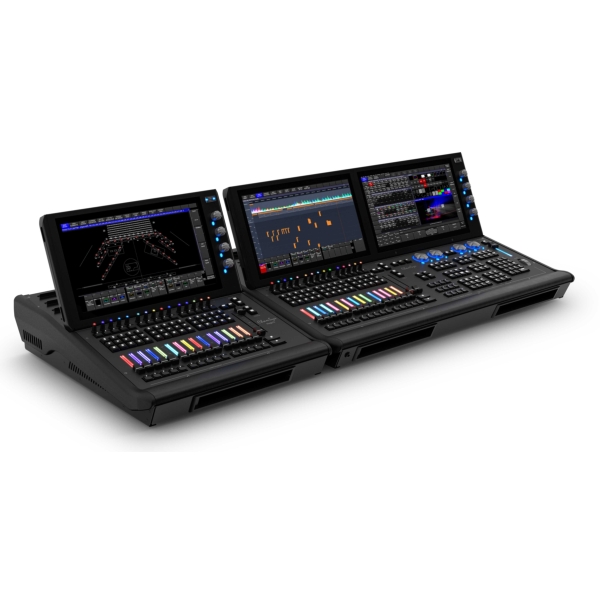

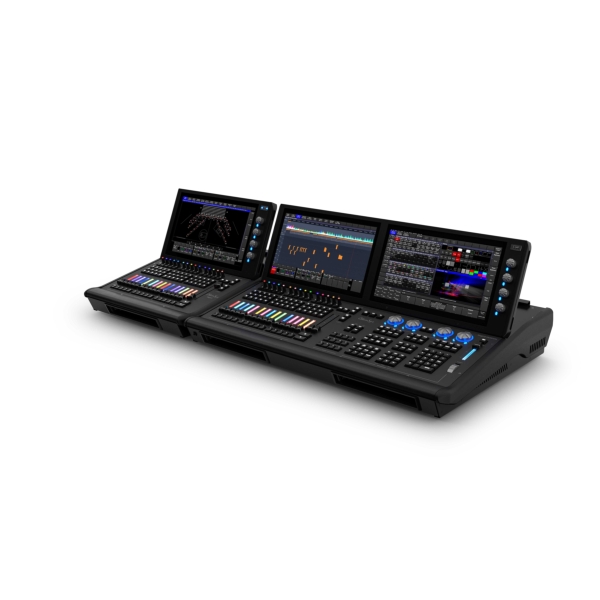

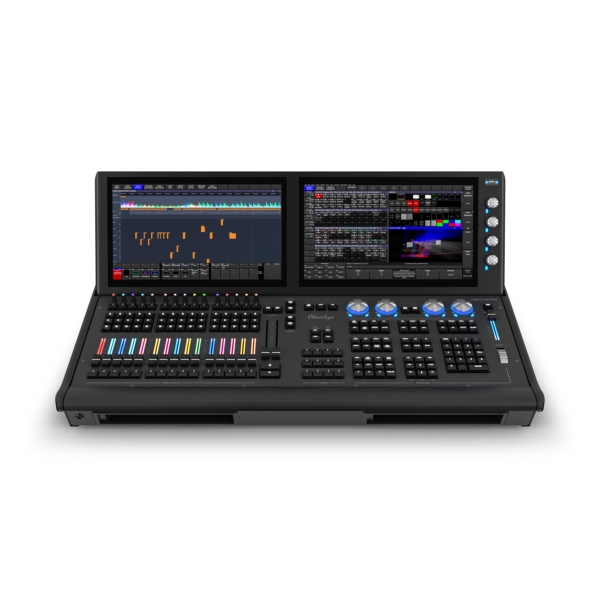

ChamSys MagicQ MQ500M Stadium Console (256 Universe)

ChamSys MagicQ MQ500M Stadium Console Features

- 256 universes direct from the console
- 15 fully motorised fader playbacks
- 15 encoder playback with RGB indicators
- 12 multi-purpose Macro/Executes/Playbacks keys
- RGB illumination of playbacks
- Backlit buttons
- Dual Inbuilt 15-inch Multi HD touch displays
- Up to 8 touch displays support (5 via remote network)
- Dual motorised 100mm crossfaders ideal for Theatre
- Inbuilt MagicVis Visualiser with full rendering of beams and gobos

ChamSys MagicQ MQ500M Stadium Console Specifications

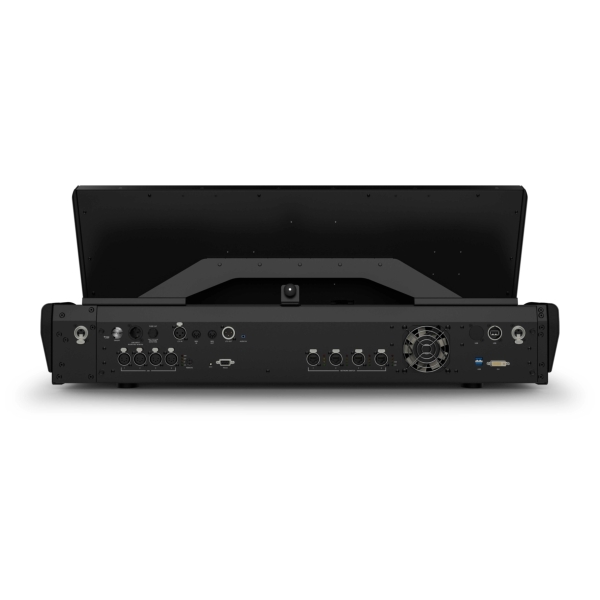

Hardware Specifications:
- Universes direct from the console (via Artnet/sACN/Pathport): 256
- Direct DMX Outputs: 4
- Motorised Playbacks: 15
- Encoder Playbacks: 15
- Macro/Execute/Playback Section keys: 12
- Total no of Playbacks: 42 (15+15+12)
- Dual Motorised Cross Faders: Yes
- Attribute Encoders: 8
- Backlit Keys: Yes
- Illuminated Playback/Encoders with RGB control: Yes
- Intensity Wheel: 1
- Network Ports: 4
- Inbuilt 15-inch HD Multi-Touch Displays: 2
- External Monitor up to 1920x1200 Resolution - DVI-D Port: 1
- USB Ports, including 2 High Power USBs: 6
- Audio Input (1 channel, 7 band): Yes
- Audio Output: Yes
- MIDI Ports 1 in and out: Yes
- LTC Timecode Ports in and out: Yes
- Remote Input: Yes
- Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
- Front Storage Pockets: 2
- Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:
- Max Number of DMX Channels: 131,072
- Max Number of Fixtures Supported: 131,072
- Max Number of Cues: 5000
- Max Number of Cue Stacks: 2000
- Max Number of Groups: 5000
- Max Number of Palettes: 4096
- Number of Media Server Layers Supported: 50 (each different content)
- Numbers of Shows: Virtually unlimited (500GB SSD)

Flight Cased Weights and Dimensions:
- Width: 940mm (37 inches)
- Depth: 670mm (26.4 inches)
- Height: 290mm (11.4 inches)
- Weight (console in flightcase): 55kg (121 lb)

Console Weights and Dimensions:
- Width: 860mm (33.8 inches)
- Depth: 585mm (23 inches)
- Height: 90mm high at front (3.5 inches), 175mm high at rear (screens stored) (6.9 inches)
- Weight: 32kg (70.5 lb)

Further Product Information Below

Chamsys MagicQ manual (PDF)

Chamsys MagicQ MQ500M Spec Sheet (PDF)

Chamsys MagicQ MQ500M and Wing Data Sheet (PDF)

ChamSys MagicQ MQ500M Stadium Console Supplied With

- Dual Colour Desk lights: 2
- Dust cover: 1
- Neutrik powerCON TRUE1 Power Cable: 1
- Monitor arm with VESA mount: 1
- USB Keyboard: 1
- USB Mouse: 1
