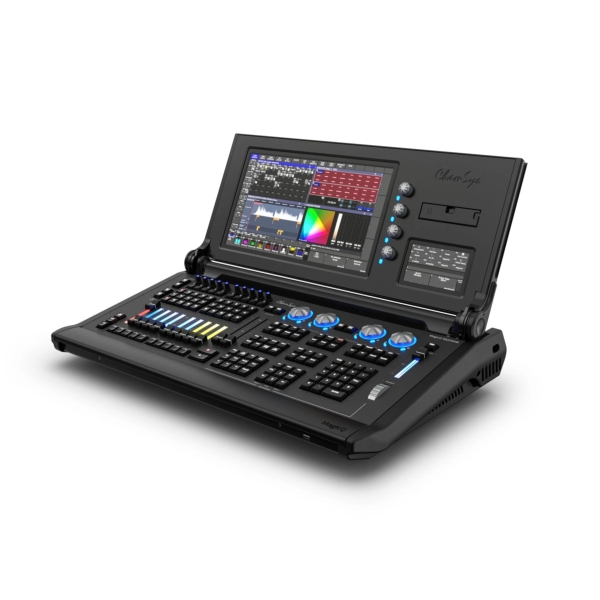

ChamSys MagicQ MQ250M Stadium Console (64 Universe)

Name: ChamSys MagicQ MQ250M Stadium Console (64 Universe)
Brand: ChamSys
Price: 15533.86 GBP
Availability: InStock

Price Each £12,944.88 (£15,533.86 Including VAT at 20%)

REF: JP105077

Quantity:

ChamSys MagicQ MQ250M Stadium Console (64 Universe)

The ChamSys MagicQ MQ250M Stadium Console combines a high capacity of show control with portability for a complete on-the-go console solution. MQ250M has the ability to control up to 128 universes without any additional processing equipment with the ready-to-go MagicQ software you are already familiar with. 10 backlit and motorised faders and 10 backlit playback encoders with executors give you a lot of programming real estate in the small frame MQ250M is designed in.

Click Here for Printer Friendly Version

ChamSys MagicQ MQ250M Stadium Console Features

- 64 universes direct from the console, with 128 universe upgrade option
- 10 fully motorised fader playbacks
- 10 encoder playbacks
- RGB illumination of playbacks
- Backlit buttons
- Inbuilt 15-inch Multi HD touch display
- Dedicated 5-inch Attribute/Encoder touch display
- Dual 100mm Manual Cross Faders
- 2 dedicated high power USBs for charging of phones/tablets
- Inbuilt Wi-Fi connects to MagicQ Remote control app

ChamSys MagicQ MQ250M Stadium Console Specifications

Hardware Specifications:
- Universes direct from the console (via Artnet/sACN/Pathport): 64* expandable to 128
- Direct DMX Outputs: 4
- Motorised Playbacks: 10
- Encoder Playbacks: 10
- Total no of Playbacks: 20 (10+10)
- Dual Cross Faders: Yes
- Attribute Encoders: 8
- Backlit Keys: Yes
- Illuminated Playback/Encoders with RGB control: Yes
- Intensity Wheel: 1
- Network Ports: 4
- Inbuilt 15" HD Multi-Touch Displays: 1
- Inbuilt Attribute/Execute display: 1
- External Monitor up to 1920x1200 Resolution - Display Port: 1
- USB Ports, including 2 High Power USBs: 6
- Audio Input (1 channel, 7 band): Yes
- Audio Input Sound to Light: Yes
- Audio Output: Yes
- MIDI Ports 1 in and out: Yes
- LTC Timecode Ports in and out: Yes
- 10Scene Port: 1
- Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
- Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:
- Max Number of DMX Channels: 32,768 *expandable to 65,536
- Max Number of Fixtures Supported: 32,768 *expandable to 65,536
- Max Number of Cues: 5000
- Max Number of Cue Stacks: 2000
- Max Number of Groups: 5000
- Max Number of Palettes: 4096
- Number of Media Server Layers Supported: 50 (each different content)
- Numbers of Shows: Virtually unlimited (500GB SSD)

Flight Cased Weights and Dimensions:
- Weight (console in flightcase): 26kg (57.3lbs)

Console Weights and Dimensions:
- Width: 680mm (26.7 inches)
- Depth: 416mm (16.3 inches)
- Height: 159mm (6.25 inches)
- Weight: 13kg (28.6lbs)

Further Product Information Below

Chamsys MagicQ MQ250M Data Sheet (PDF)

ChamSys MagicQ MQ250M Stadium Console Supplied With

- Dual Colour Desk lights: 2
- Dust cover: 1
- Neutrik powerCON TRUE1 Power Cable: 1
- Display port to HDMI Cable: 1
