ChamSys GeNetix TouchScene

Name: ChamSys GeNetix TouchScene
Brand: ChamSys
Price: 597.79 GBP
Availability: InStock

Price Each £498.16 (£597.79 Including VAT at 20%)

REF: JP110114

Quantity:

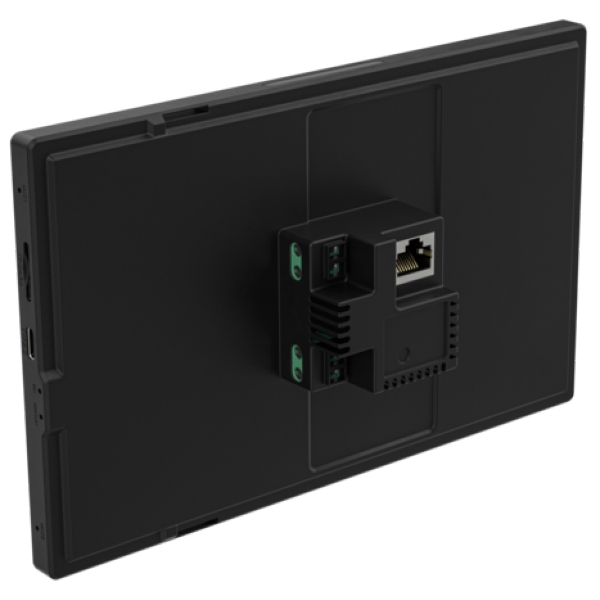

ChamSys GeNetix TouchScene

The ChamSys GeNetix TouchScene elegantly integrates with MagicQ or QuickQ systems and GeNetix nodes for remote Scene activation. When connected to GeNetix Nodes, TouchScenes can be used to toggle on/off Scenes stored on GeNetix Nodes. When TouchScenes are used with MagicQ or QuickQ controllers, additional Scene level control is available. Connecting to a MagicQ control system allows for complete interface customisation, including custom icons and images as well as fully customising the items on the display.
Whether pairing with GeNetix Nodes or ChamSys controllers, TouchScene includes inbuilt layouts that allow its 8-inch touchscreen to become a surface suitable for any installation. Along with the practical advantages and aesthetic appeal of graphic display customization, GeNetix TouchScene is PoE-powered, allowing integrators to easily add remote control to installations using standard Ethernet cable for connectivity.

Click Here for Printer Friendly Version

ChamSys GeNetix TouchScene Features

- 8-inch Touch Screen
- Connects to either MagicQ Systems, QuickQ Consoles or GeNetix Nodes
- PoE Powered
- Features Selectable In-built Layouts
- Customisable Layouts when connected to either MagicQ or QuickQ consoles
- Supports Pin Locking when connected to MagicQ or QuickQ consoles

ChamSys GeNetix TouchScene Specifications

Hardware Specification:
- Screen Size: 8-inch
- 48v PoE Powered: Yes Unlocks MagicQ PC Systems: No*
- Fits EU / UK / US Single Gang Backbox: Yes
- Please Note: When used with MagicQ PC Systems, MagicQ must be fully unlocked in order for the TouchScene to work with the PC System

Software Specifications (When used with PC Systems):
- Connects to MagicQ Consoles: Yes
- Connects to QuickQ Consoles: Yes
- Connects to GeNetix Nodes: Yes
- Connects to MagicQ PC Systems: Yes - Required System to be Full Unlocked
- Number of Zones when used with MagicQ Systems: 50
- Number of Zones when used with QuickQ Consoles: 10
- PIN Locking: Yes - MagicQ/QuickQ Only
- Customisable Screen Saver Images: Yes
- Inbuilt UI Layouts: Yes
- Customisable UI Layout: Yes - MagicQ / QuickQ Only

Physical:
- Dimensions (W x H x D): 200 x 124.59 x 37.7 mm
- Weight: 0.4 kg

Further Product Information Below

ChamSys GeNetix TouchScene Data Sheet (PDF)

ChamSys GeNetix TouchScene Supplied With

- Quick Start Guide
- TouchScene Wall Mount Bracket
