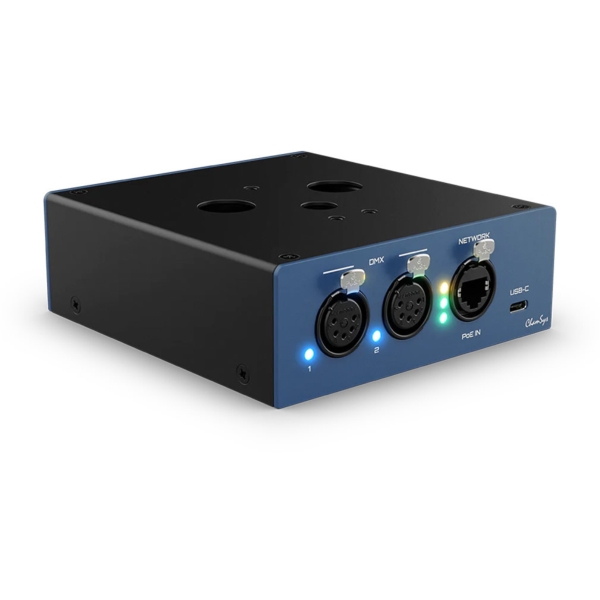

ChamSys GeNetix GN2 2-Port Ethernet-DMX Node for Art-Net / sACN Consoles

Name: ChamSys GeNetix GN2 2-Port Ethernet-DMX Node for Art-Net / sACN Consoles
Brand: ChamSys
Price: 713.6 GBP
Availability: InStock

Price Each £594.67 (£713.60 Including VAT at 20%)

REF: JP108353

Quantity:

ChamSys GeNetix GN2 2-Port Ethernet-DMX Node for Art-Net / sACN Consoles

The ChamSys GeNetix GN2 2-Port Ethernet-DMX Node for Art-Net / sACN Consoles is a two-port Ethernet-DMX node that is compatible with any console supporting Art-Net and sACN. GeNetix Node 2 can also be used as a USB interface for MagicQ PC systems, unlocking MagicQ into reduced mode when connected via its USB-C or Network port.
Configuration is simple, whether done locally via its in-built display, remotely with its onboard web server or from the console. Powered by either PoE or its USB-C port, this versatile device is at home in many different environments as a standalone interface, truss-mounted in the rig via its M12 receiver or installed via its DIN rail mount.
GeNetix Node 2 supports Art-Net, sACN, RDM and supports both DMX input or output from its two DMX ports.

Click Here for Printer Friendly Version

ChamSys GeNetix GN2 2-Port Ethernet-DMX Node for Art-Net / sACN Consoles Features

- 2 RDM DMX Ports supporting Input and Output
- Supports Art-Net & sACN
- Webserver for remote configuration

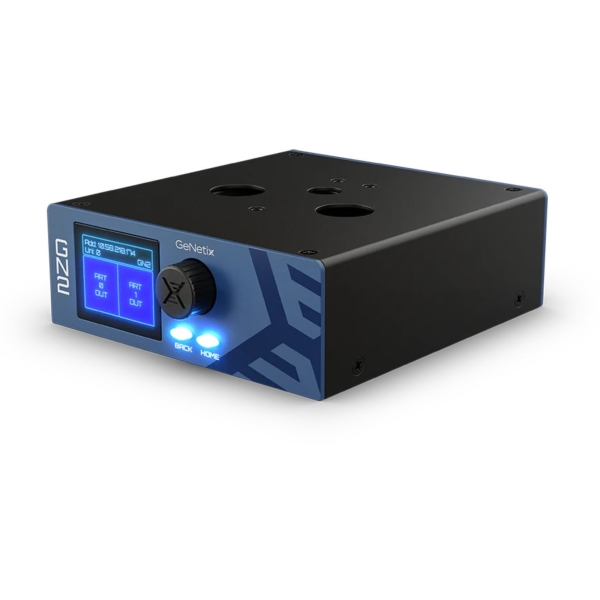

- In-built display and encoder for local configuration
- Can be USB or PoE powered
- Unlocks MagicQ PC Systems into Reduced Mode via either USB or Network

ChamSys GeNetix GN2 2-Port Ethernet-DMX Node for Art-Net / sACN Consoles Specifications

Hardware Specifications:
- RDM Direct DMX Ports: 2
- Network Ports: 1
- PoE Input: Yes (Port 1)
- USB Ports: 1 USB-C
- Kensington Security Lock Fixing: Yes
- Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:
- Art-Net/sACN: Yes
- ChamNet Support: Yes
- Configurable DMX Timings: Yes
- Web Server: Yes
- DMX Redundancy Support: Yes
- User Scene Store: Yes

Physical:
- Dimensions (W x H x D): 125 x 44 x 133 mm
- Weight: 0.85 kg

Further Product Information Below

ChamSys GeNetix GN2 Data Sheet (PDF)

ChamSys GeNetix GN2 2-Port Ethernet-DMX Node for Art-Net / sACN Consoles Supplied With

- Neutrik powerCON TRUE1 Power Cable: 1
- DIN Rail Mount Clip: 1
- USB A-C Cable: 1
