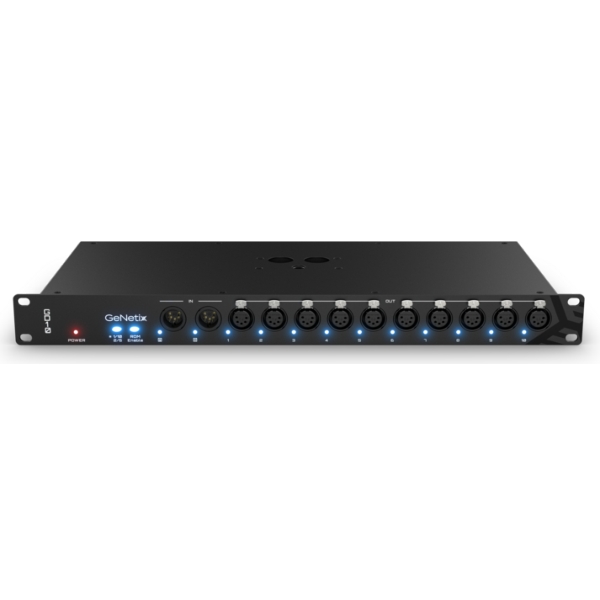

ChamSys GeNetix GD10 RDM 10-Port DMX Node

Name: ChamSys GeNetix GD10 RDM 10-Port DMX Node
Brand: ChamSys
Price: 539.88 GBP
Availability: InStock

Price Each £449.90 (£539.88 Including VAT at 20%)

REF: JP110117

Quantity:

ChamSys GeNetix GD10 RDM 10-Port DMX Node

The ChamSys GeNetix GD10 RDM 10-Port DMX Node is a 19-inch 1U rack-mountable, RDM-capable 10-Port DMX Splitter at home in many different environments, with a design suited for both long-term installations and live events. Two selectable operating modes offer either 1x10 or 2x5 DMX signal distribution. GD10 features an 'RDM Disable button' to strip out RDM data and retime the DMX signal, and its ruggedly built construction includes a PowerCon True1 Mains Input connector.

Click Here for Printer Friendly Version

ChamSys GeNetix GD10 RDM 10-Port DMX Node Features

- 10 Port RDM E1.20 Compliant DMX Splitter
- 2 Operating Modes: 1 In / 10 Out or 2 In / 5 Out
- PowerCon True1 Top Mains Input
- M12 Threaded Insert for Clamp Mounting
- Designed for safe and secure rack or truss mounting

ChamSys GeNetix GD10 RDM 10-Port DMX Node Specifications

Hardware Specification:
- 5 Pin DMX Output Ports: 10
- 5 Pin DMX Input Ports: 2
- RDM Enable/Disable Option: Yes
- M12 Clamp Fixing: Yes
- Power Input: Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications (When used with PC Systems):
- RDM E1.20 Compliant: Yes

Physical:
- Dimensions (W x H x D): 480 x 44.4 x 218 mm
- Weight: 2.75 kg

Further Product Information Below

ChamSys GeNetix GD10 Data Sheet (PDF)

ChamSys GeNetix GD10 RDM 10-Port DMX Node Supplied With

- Neutrik powerCON TRUE1 Power Cable
