CS-4F/3 4-channel EtherCON to DMX Multicore Adaptor - Female XLR Tails

Price Each £40.16 (£48.19 Including VAT at 20%)

REF: JP110078

Quantity:

CS-4F/3 4-channel EtherCON to DMX Multicore Adaptor - Female XLR Tails

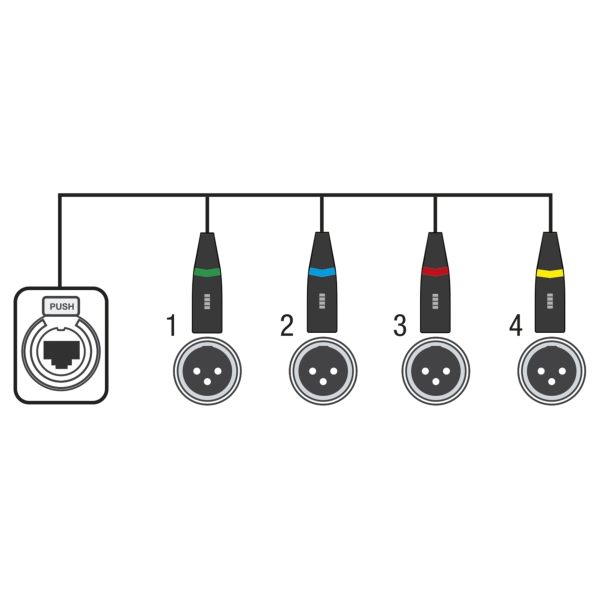

The CS-4F/3 4-channel EtherCON to DMX Multicore Adaptor is a 4-channel colour coded DMX Shuttle for connecting four male 3-pin DMX connectors to a male RJ45 internet data connector. This allows you to send data of four universes through one single CAT cable.

Click Here for Printer Friendly Version

CS-4F/3 4-channel EtherCON to DMX Multicore Adaptor Features

- Suitable for converting 4 universes to a single CAT cable
- 75 cm long cables
- Colour coded for easy identification
- Digital 110 Ohm DMX cable

CS-4F/3 4-channel EtherCON to DMX Multicore Adaptor Specifications

Electrical Specifications and Connections:
- DMX Connector Out: XLR 3P
- Data Connector In: ProCat
- Impedance: 110 Ω
- Pins: 3

Mechanical Specifications:
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black
- Dimensions (W x H x D): 25 x 32 x 930 mm
- Weight: 0.271 kg

Product Properties:
- Locking Device: Latch
- Contact Type: Nickel plated
- Conductors: 3

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C (104 °F)
- Minimum Ambient Temperature: -20 °C (-4 °F)
