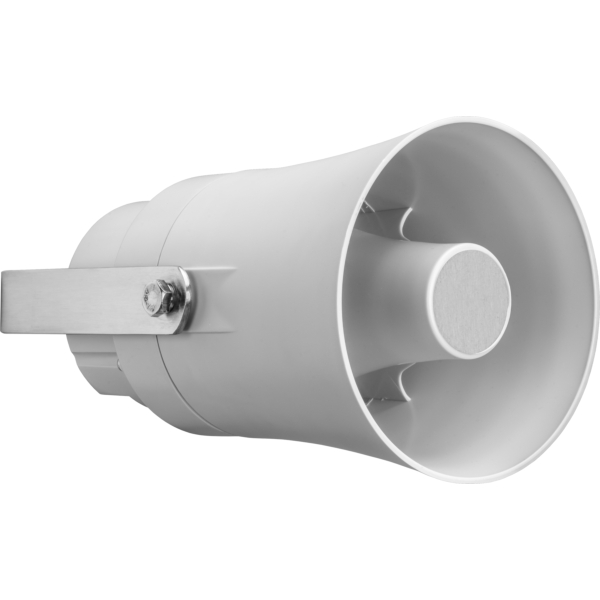

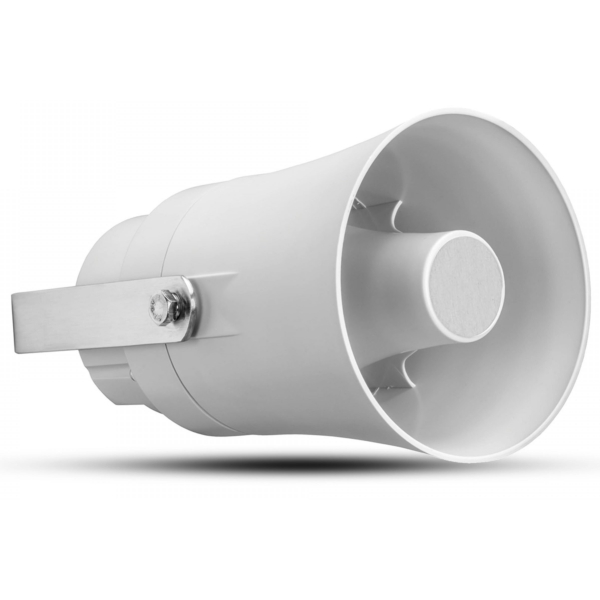

Biamp EN-H10-G Compact PA Horn, 10W @ 100V Line - IP66 - Grey

Biamp EN-H10-G Compact PA Horn Features

- Powerful horn speaker made of UV and impact resistant ABS
- Compression driver and a multi tap 100 volt transformer
- Ideal choice for in- and outdoor industrial applications
- Ceramic speaker connector block, junction box & thermal fuse
- Low impedance operation when power set to 20 ohms position
- In the 100 volt position 1.25, 2.5, 5 & 10 watts can be selected

Biamp EN-H10-G Compact PA Horn Specifications

- Loudspeaker system: compression driver
- Colour: grey
- Low impedance dynamic power in watts: 10
- Max SPL 1m in dB: 108
- Main construction material: ABS plastic
- Operating temperatures: -50°C to +100°C
- Applicable in 100V: yes
- Vertical dispersion angle 1000 Hz: 180°
- Net weight product (kg): 1.93
- Mounting system: 2 screws
- 100V transformer power taps in watts: 10 - 5 - 2.5 - 1.25
- SPL 1W/1m in dB: 98
- Frequency response in Hz: 370 - 13 k
- IP rating: 66
- Applicable low impedance: yes
- Certificate ref 1438/CPR/0355
- Closest RAL colour (subject to deviations): RAL7035

Physical:
- Dimensions (W x H x D): 142 x 142 x 210 mm
- Weight: 1.93 kg

Further Product Information Below

Biamp EN-H10-G Data Sheet (PDF)

Biamp EN-H10-G Manual (PDF)
