Biamp D-VOL120 Volume Control - 70V, 120W

For Install and Dealer Volume prices please contact us.

Need to Price Match it ? Click Here to see what we can do.

Price Each £59.78 (£71.74 Including VAT at 20%)

REF: JP109645

Quantity:

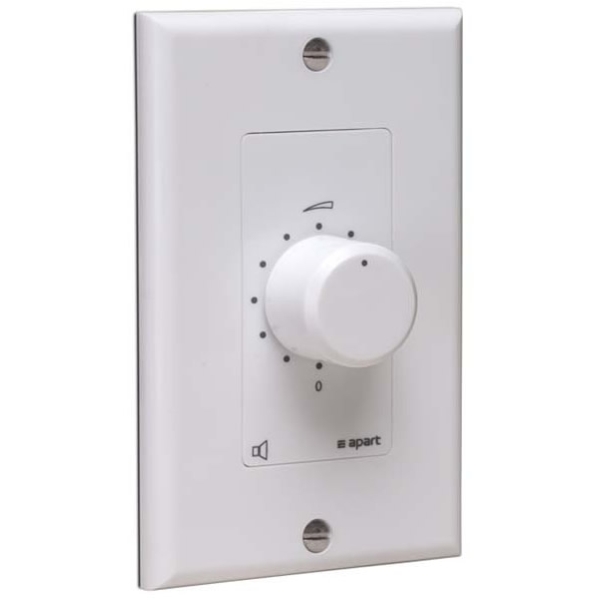

Biamp D-VOL120 Volume Control - 70V, 120W

The Biamp D-VOL120 Volume Control can handle up to 120 watts of power and is very durable thanks to the step-by-step attenuation in 11 steps + zero position. The D-VOL120 is designed to handle 24V priority signals meaning that you can always get an announcement out, even to zones where the local volume control is in the ‘OFF’ position! If your amplifier has a 24V priority output, it will send a 24V signal when you push the talk button on the microphone. The 24V signal will close a relay on the D-VOL120 volume control, and the signal will pass, even when the volume control is in the ‘OFF’ position. This can be very useful for emergency or evacuation messages. The D-VOL120 is built on a universal chassis that easily can be integrated with any Decora box offering a flush mount and neat finish.

Click Here for Printer Friendly Version

Biamp D-VOL120 Volume Control Features

- Handle up to 120 watts of power
- Very durable - step-by-step attenuator in 11 steps + zero position
- Handles 24V priority signals
- Priority signal ideal for evacuation and emergency messages
- Universal chassis
- Easily flush mounted to Decora style box

Biamp D-VOL120 Volume Control Specifications

- Stereo/mono: mono
- Applicable low impedance: no
- Applicable 70V: Yes
- Max. power: 120 watts
- Steps: 0 + 11
- 4 volt Priority relays: yes
- Mounting: screw
- Connector type: euroblock 6-pole
- Max. cable: 2.5 mm²

Physical:
- Dimensions (W x H x D): 70 x 115 x 47 mm
- Weight: 0.38 kg

Data Sheets below
