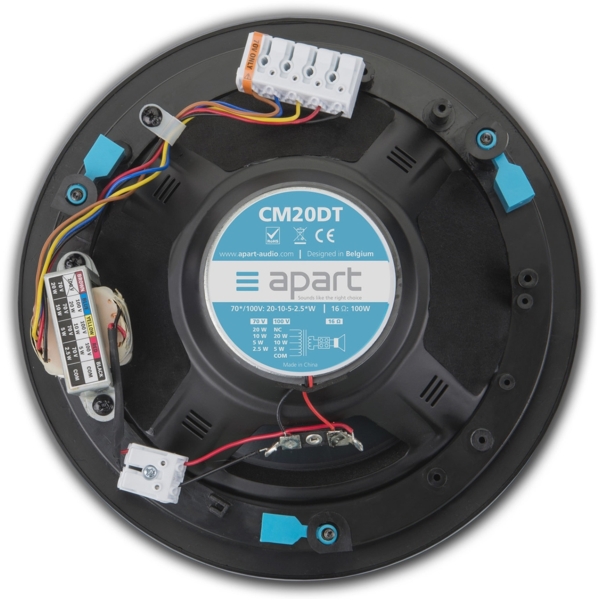

Biamp CM20DT 6.5-Inch 2-Way Ceiling Speaker, 30W @ 16 Ohms or 70V / 100V Line - IP54

Biamp CM20DT 6.5-Inch Thin Edge 2-Way Ceiling Speaker Features

- Two-way built-in loudspeaker
- Can be used in 16 ohms or 70/100 volt modes
- High-quality 70/100 volt transformer equipped with an easy tapping sticker with clear colour indication
- Paintable thin edge grille
- Connect up to 4 loudspeakers in parallel on each channel in 16ohms use
- Transformer colours are aligned with the cables connecting the Apart Quick Fit connector

Biamp CM20DT 6.5-Inch Thin Edge 2-Way Ceiling Speaker Specifications

- Loudspeaker system: 2-way
- Woofer size: 6.5-inch
- Woofer cone material: Polypropylene
- Tweeter size: 1-inch
- Mounting system: 3 screws
- 100V transformer power taps: 20 - 10 - 5watts
- 70V transformer power taps: 20 - 10 - 5 - 2.5watts
- Impedance: 16 Ω
- Low impedance dynamic power: 60 watts
- Low impedance RMS power: 30 watts
- SPL 1W/1m: 86 dB
- Max SPL 1m: 104 dB
- Frequency response: 60 - 20K/Hz
- Main construction material: ABS plastic
- Grille main material: Steel
- IP rating: 50
- Applicable low impedance: Yes
- Applicable in 100V: Yes
- Vertical dispersion angle 1000 Hz: 180°

Physical:
- Dimensions (W x H x D): 210 x 80 x 210 mm
- Cutout: 186 mm
- Weight: 1.24 kg
