Artecta Fresnel 20 SW LED Track Light, VW - White

Name: Artecta Fresnel 20 SW LED Track Light, VW - White
Brand: Artecta
Price: 184.13 GBP
Availability: InStock

Price Each £153.44 (£184.13 Including VAT at 20%)

REF: JP110463

Quantity:

Artecta Fresnel 20 SW LED Track Light, VW - White

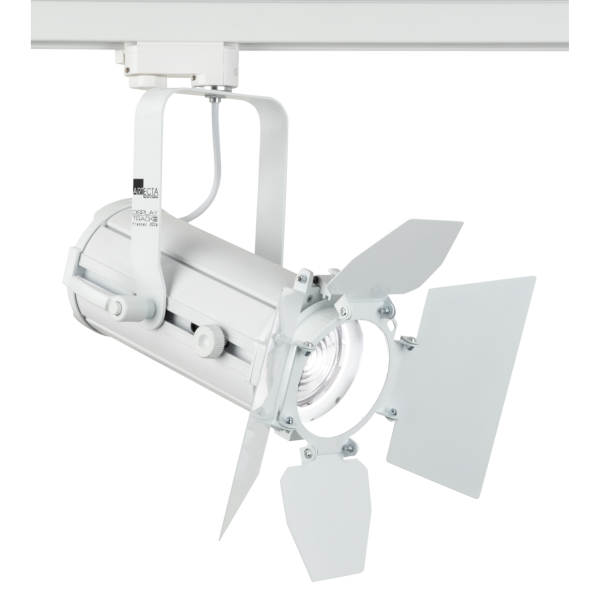

The Artecta Fresnel 20 SW LED Track Light is a compact 20 watt Cold and Warm White LED Fresnel, mountable on most 3-Circuit track systems and suitable for indoor display applications. Its soft-edge output can manually be set between a narrow 13° and a wide 57° beam angle. A switch at the back of the fixture enables you to set either a 3000 K or 6000 K colour temperature, both rendering with high (>92 CRI) accuracy. Moreover, a dimmer function is built in for controlling the output intensity. The Display Track Fresnel 20 SW fits in every setting with either a black and white housing and a dedicated barndoor is included for shaping its output.

Click Here for Printer Friendly Version

Artecta Fresnel 20 SW LED Track Light Features

- Track Light Fresnel
- Compatible with Artecta 3-Circuit tracks
- 2-step CCT: 3000 K and 6000 K
- Wide adjustable beam angle (13°-57°)
- Dimmer function

Artecta Fresnel 20 SW LED Track Light Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 20 W
- LED Colour Type: WW, CW
- Illuminance @ 2 m: 1457 lx
- Luminous Flux (Total): 537 lm
- CRI: 95
- Minimum CCT: 3000 K
- Maximum CCT: 6000 K

Optical:
- Beam Angle (Circular):
- Minimum: 13 °
- Maximum: 57 °

Control and Programming:
- Dimmable: Yes

Electrical Specifications and Connections:
- Power Supply: 240 V AC 50/60 Hz
- Power Consumption: 25 W
- Power Connector In: 3 Phase Track Adaptor

Physical:
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Finish: Powder Coating
- Colour: White
- Dimensions (W x H x D): 187 x 246 x 333 mm
- Weight: 2.1 kg

Rigging:
- Mounting Options: 3-Circuit Track Adapter
- Mounting Options: Bracket
- Safety Attachment: Yes

Product Properties:
- Cooling: Forced Convection

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C (104 °F)

Further Product Information Below

Artecta Fresnel 20 SW Manual (PDF)

Artecta Fresnel 20 SW LED Track Light Supplied With

- Barndoor
