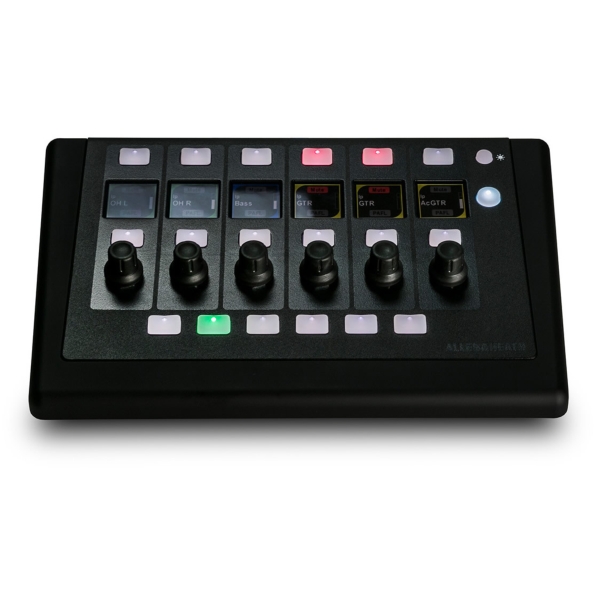

Allen & Heath IP6/240X Remote Controller for dLive with 6x Rotary Encoders

Name: Allen & Heath IP6/240X Remote Controller for dLive with 6x Rotary Encoders
Brand: Allen & Heath
Price: 946.78 GBP
Availability: InStock

Price Each £788.98 (£946.78 Including VAT at 20%)

REF: JP107208

Quantity:

Allen & Heath IP6/240X Remote Controller for dLive with 6x Rotary Encoders

The Allen & Heath IP6/240X Remote Controller for dLive with 6x Rotary Encoders is a next-generation remote controller for the AHM-64 matrix processor, or for dLive and Avantis mixing systems, ideal for many install and live sound applications. It interfaces with the AHM-64, Avantis or dLive mixing system via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure.
The IP6 can be configured to control the Send levels, Pans and assignments of multiple channels to a specific mix on the dLive/Avantis, e.g. for wireless IEM use, giving musicians the freedom to control their own monitor sound. The installer or system integrator can configure the IP6 to provide the degree of control needed by the day to day operator, for example the levels of microphones and music sources in a room.

Click Here for Printer Friendly Version

Allen & Heath IP6/240X Remote Controller for dLive with 6x Rotary Encoders Features

- 6x Push n Turn Rotary encoders
- 6x Layers
- PoE or external 12V PSU (supplied)
- Interface with dLive, Avantis and AHM64 via TCP/IP
- Network with other controllers, computers and third party devices
- Compatible with the dLive product series
- A unique Auto Firmware Matching system keeps the firmware in sync
- 12 RGB LED buttons and 6 colour LCD displays provide extensive information and control
- 6 Rotary controllers can be set to a range and can control any input or output from a dLive system

Allen & Heath IP6/240X Remote Controller for dLive with 6x Rotary Encoders Specifications

- Network: Fast Ethernet 100 MBps
- External DC In: +12V, 360mA
- PoE: 802.3af (15.4W at source)
- Max power consumption: 5W
- Operating Temperature Range: 0 °C to 35 °C (32 °F to 95 °F)

Physical:
- Dimensions (W x H x D): 227 x 55 x 150 mm
- Weight: 1.5 kg

Further Product Information Below

Allen & Heath IP6/240X Data Sheet (PDF)

Allen & Heath IP6/240X Manual (PDF)

Allen & Heath IP6/240X Installation Instructions (PDF)
