Allen & Heath DT20 Dante Input Interface with 2x XLR/Jack Inputs @ 48 / 96 kHz, Includes PSU

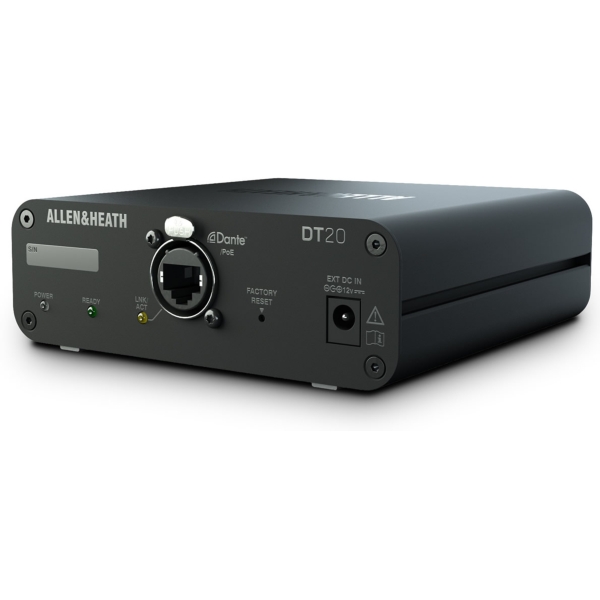

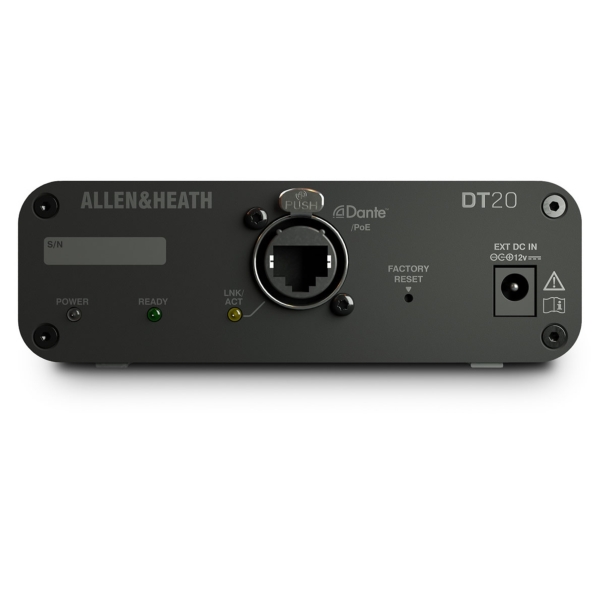

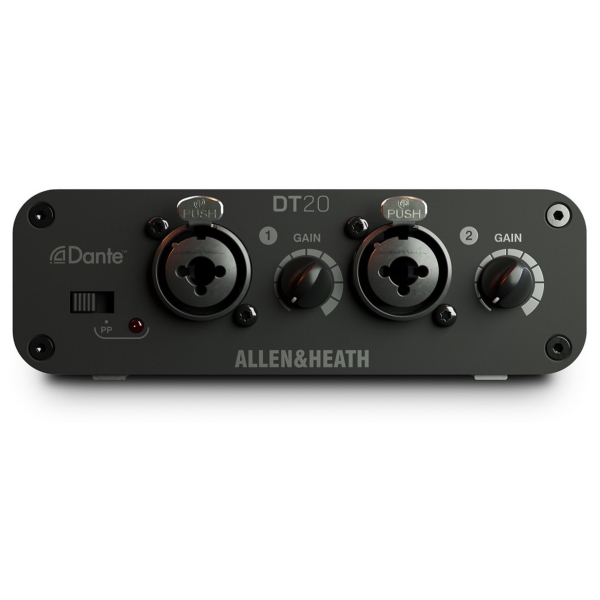

The Allen & Heath DT20 Dante Input Interface with 2x XLR/Jack Inputs @ 48 / 96 kHz is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs wherever you need to get analogue audio into a Dante network. Ideal for both fixed installation and AV hire / live applications, DT20 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems. Thanks to its compact format, DT20 can be easily mounted under a table, podium etc. for local mic connection – or rack-mounted wherever required – on stage, or at FoH.
The unit can be PoE powered or powered via a DC 12V supply. Two versions are available: the standard DT20 with power supply and rubber feet, or the DT20-M which includes surface mounting ears (and no power supply).

Click Here for Printer Friendly Version

Allen & Heath DT20 Dante Input Interface with 2x XLR/Jack Inputs @ 48 / 96 kHz Features

- Dante input interface, 48kHz/96kHz
- 2x combi mic/line inputs
- Local gain control
- 48V phantom power with LED indicator
- PoE powered or DC 12V
- EtherCon connector
- Rugged aluminium box
- AES67 compatible
- Dante Domain Manager ready

Allen & Heath DT20 Dante Input Interface with 2x XLR/Jack Inputs @ 48 / 96 kHz Specifications

- Mic Inputs: Balanced XLR, +48V phantom
- Analogue Gain: 0 to +55 dB
- Line Inputs: Balanced TRS, -20 dB PAD
- Maximum Input Level: +30 dBu (TRS in)
- Input Impedance: >4 kΩ (XLR), >10 kΩ (TRS)
- Dante: 48 kHz / 96 kHz
- Power and Temperature
- DC Input: +12V DC 1.25A
- Power Consumption: 10W max
- Operating Temperature Range: 0 °C to 40 °C (32 °F to 104 °F)
- PoE Requirements: 802.3 af 15W

Physical:
- Dimensions (W x H x D): 130 x 43 x 136 mm
- Weight: 0.5 kg

Further Product Information Below

Allen & Heath DT20/240X Data Sheet (PDF)

Allen & Heath DT20/240X Manual (PDF)

Allen & Heath DT20 Dante Input Interface with 2x XLR/Jack Inputs @ 48 / 96 kHz Supplied With

- Allen & Heath DT20
- Power Supply
- Rubber Feet
