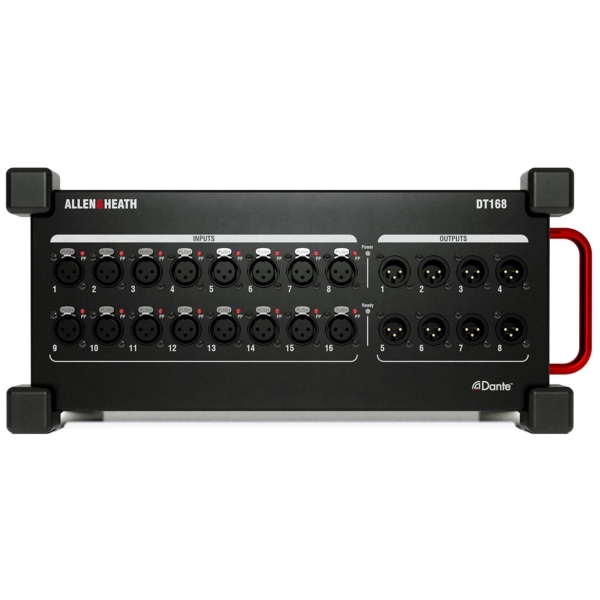

Allen & Heath DT168 Dante Digital Stage Box/Multicore - 16 Inputs, 8 Outputs @ 48 / 96 kHz

Allen & Heath DT168 Dante Digital Stage Box/Multicore Features

- Dante audio expander, 96kHz / 48kHz
- Portable stagebox design
- 16x microphone preamps on XLR with Phantom Power status LEDs
- 8x XLR Line Outs
- Primary and Secondary Dante ports with locking EtherCon
- Redundant or Switched mode
- Direct preamp control from dLive, Avantis, AHM-64 and SQ
- Remote control of preamps via DT Preamp Control software for integration with 3rd party systems
- Optional 19-inch rack mount kit available
- Rubber bumpers and carry handle
- AES67 compatible
- Dante Domain Manager ready

Allen & Heath DT168 Dante Digital Stage Box/Multicore Specifications

Mic/Line XLR Inputs: Balanced, +48V Phantom Power
- Mic/Line Preamp: Fully recallable
- Input Sensitivity: -60 to +15 dBu
- Analogue Gain: +5 to +60 dB, 1 dB steps
- Pad: -20 dB Active PAD
- Maximum Input Level: +30 dBu (PAD in)
- Input Impedance: >4 kΩ (Pad out), >10 kΩ (Pad in)

Mic/Line Channel noise: 22-22 kHz, Direct Out @ unbalanced out
- Mic EIN: -127dB with 150 Ω source
- Unity gain (Pad in): -90 dBu
- Low gain (5 dB, Pad out): -96 dBu
- Mid gain (30 dB, Pad out): -90 dBu

Mic/Line Channel THD+N 22-22 kHz, Direct Out @ unbalanced out
- Unity gain (Pad in): 0.003% -88 dBu @ 1kHz, 0 dBu output
- Low gain (5dB, Pad out): 0.002% -93 dBu @ 1kHz, 0 dBu output
- Mid gain (30dB, Pad out): 0.003% -88 dBu @ 1kHz, 0 dBu output

Analogue XLR Outputs: Balanced, Relay protected
- Output Impedance: <75 Ω
- Nominal Output: +4 dBu = 0 dB meter reading
- Maximum Output: Level +22 dBu
- Residual Output: Noise -92 dBu (muted, 20-20 kHz)

Dante:
- Sample rate: 48 kHz or 96 kHz
- Bit Depth: 24 Bit
- Gain, Pad, 48v Control: Allen & Heath dLive, Avantis, AHM-64 or SQ system

- Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
- Mains Power 100-240V, 50/60 Hz, 40W max

Physical:
- Dimensions (W x H x D): 410 x 185 x 190 mm
- Weight: 4.6 kg
