Allen & Heath DT02 Dante Output Interface with 2x XLR Outputs @ 48 / 96 kHz, Includes PSU

Name: Allen & Heath DT02 Dante Output Interface with 2x XLR Outputs @ 48 / 96 kHz, Includes PSU
Brand: Allen & Heath
Price: 297.77 GBP
Availability: InStock

Price Each £248.14 (£297.77 Including VAT at 20%)

REF: JP107212

Quantity:

Allen & Heath DT02 Dante Output Interface with 2x XLR Outputs @ 48 / 96 kHz, Includes PSU

The Allen & Heath DT02 Dante Output Interface with 2x XLR Outputs @ 48 / 96 kHz is a cost-effective, compact 48kHz/96kHz Dante interface enabling 2x XLR outputs wherever you need them on your Dante network. Ideal for a wide variety of fixed installation and AV hire / portable applications, DT02 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as with third party Dante systems. Housed in a compact rugged aluminium box, and with optional mounting ears or rack kit, DT02 can be easily deployed wherever you need it, either mounted in proximity of active speakers or monitors, or placed in the equipment rack.
The unit can be PoE powered or powered via a DC 12V supply. Two versions are available, the standard DT02 with power supply and rubber feet, or the DT02-M which includes surface mounting ears (and no power supply).

Click Here for Printer Friendly Version

Allen & Heath DT02 Dante Output Interface with 2x XLR Outputs @ 48 / 96 kHz Features

- Dante output interface, 48kHz/96kHz
- 2x XLR line outputs
- PoE powered or DC 12V
- EtherCon connector
- Rugged aluminium box
- AES67 compatible
- Dante Domain Manager ready
- Includes Power Supply and Rubber Feet

Allen & Heath DT02 Dante Output Interface with 2x XLR Outputs @ 48 / 96 kHz Specifications

- XLR Outputs: Balanced, relay protected
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Dante: 48kHz/96kHz
- Power and Temperature
- DC Input: +12V DC 1.25A
- Power Consumption: 10W max
- Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
- PoE Requirements: 802.3 af 15W

Physical:
- Dimensions (W x H x D): 130 x 43 x 131 mm
- Weight: 0.5 kg

Further Product Information Below

Allen & Heath DT02/240X Data Sheet (PDF)

Allen & Heath DT02/240X Manual (PDF)

Allen & Heath DT02 Dante Output Interface with 2x XLR Outputs @ 48 / 96 kHz Supplied With

- Allen & Heath DT02
- Power Supply
- Rubber Feet

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Allen & Heath DT02 Dante Output Interface with 2x XLR Outputs @ 48 / 96 kHz, Includes PSU

Related products:

Allen & Heath DT-RK19 Rack Mount Kit for DT02, DT20 and DT22 Interfaces

Allen & Heath DT-SMK Surface Mount Kit for DT02, DT20 and DT22 Interfaces

3M 3 pin XLR Male to Female DMX 512

Allen & Heath DT02M Dante Output Interface with 2x XLR Outputs @ 48 / 96 kHz, Excludes PSU

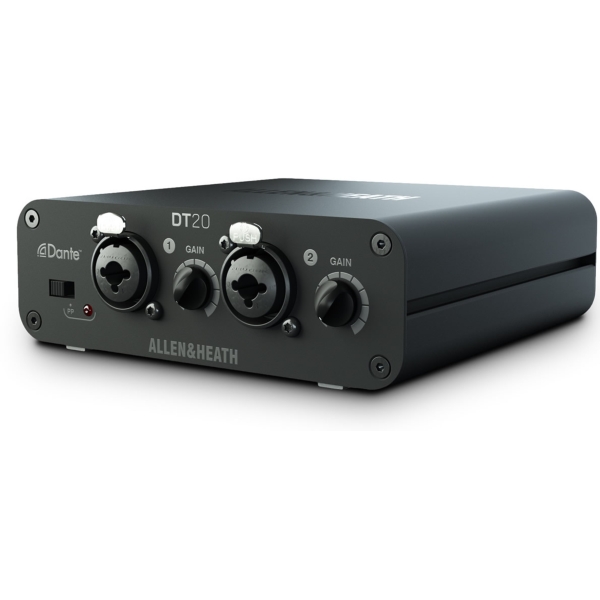

Allen & Heath DT20 Dante Input Interface with 2x XLR/Jack Inputs @ 48 / 96 kHz, Includes PSU

Allen & Heath DT20M Dante Input Interface with 2x XLR/Jack Inputs @ 48 / 96 kHz, Excludes PSU

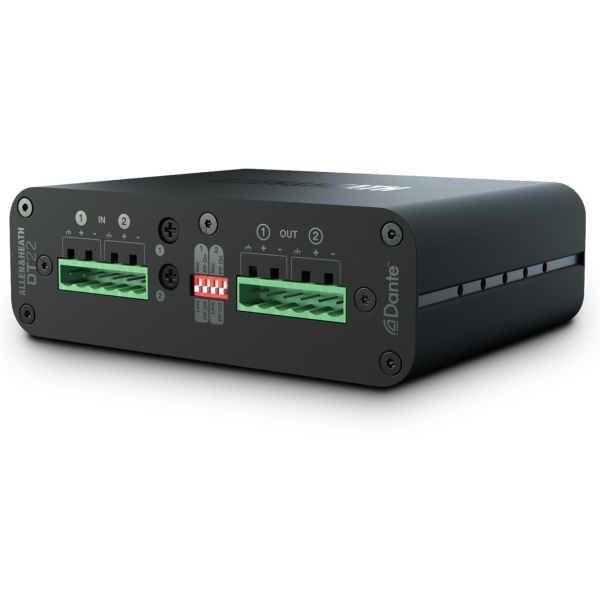

Allen & Heath DT22M Dante Interface with 2x Inputs/Outputs @ 48 / 96 kHz
