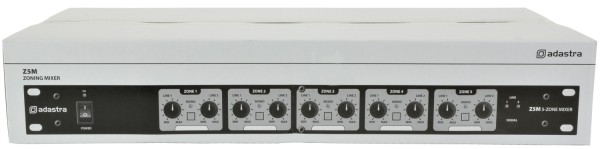

Adastra Z5M 1U Zone Mixer, 2 Inputs to 5 Outputs

Name: Adastra Z5M 1U Zone Mixer, 2 Inputs to 5 Outputs
Brand: Adastra
SKU: 5015972101957
Price: 91.19 GBP
Availability: InStock

Price Each £75.99 (£91.19 Including VAT at 20%)

REF: JP67181

Quantity:

Adastra Z5M 1U Zone Mixer, 2 Inputs to 5 Outputs

The Adastra Z5M 1U Zone Mixer, 2 Inputs to 5 Outputs is a 2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

Click Here for Printer Friendly Version

Adastra Z5M 1U Zone Mixer, 2 Inputs to 5 Outputs Features

- 2 inputs to 5 zones
- Mono selectable for each zone
- Fully balanced XLR connections

Adastra Z5M 1U Zone Mixer, 2 Inputs to 5 Outputs Specifications

- Power Supply: 115/230Vac 50/60Hz (IEC)
- Inputs: Line 1 L+R, Line 2 L+R, balanced XLRF
- Outputs: Zone 1 to 5 L+R, balanced XLRM
- Input Impedance: 40 kΩ
- Output Impedance: 220 Ω
- Frequency Response: 20Hz - 25kHz, +0/-1dB
- Signal to noise ratio: >100dB
- THD: <0.005%
- Dimensions: 483 x 175 x 44mm
- Weight: 2.2kg

Further Product Information Below

Adastra Z5M Manual (PDF)
