Adastra RX45 Advanced Audio Matrix

The Adastra RX45 Advanced Audio Matrix is a 1U rack-mountable audio matrix feeding 4 selectable inputs to 5 stereo outputs. An inbuilt audio player section features playback from USB media, DAB+ tuner or Bluetooth. Each zone output has a push button and LED ladder on the front panel for selecting the input source and adjusting level and tone settings in the master section. Connecting optional TR86 wall plates via CAT5 cable enables remote source and level selection for any zone. The output for the selected zone may be monitored through a headphones output on the front panel. The RX45 system is expandable using multiple RX45 units cascaded together via dual CAT5 links, with DIP switches to assign one of 8 different IDs to each connected RX45 unit, providing up to 40 distinct zones. Additional DIP switches can be set to link the audio player from one unit to one or more connected slaves.

Click Here for Printer Friendly Version

Adastra RX45 Advanced Audio Matrix Features

- Expandable up to 40 individual zones (8 x RX45)
- Inbuilt USB, DAB+ and BT audio player
- Local or optional TR86 remote control per zone
- Local audio connection available if using TR86 remote
- Emergency mute and emergency audio input contacts
- RX45 units linkable using standard CAT5 cable

Adastra RX45 Advanced Audio Matrix Specifications

- Power supply: 100-250Vac, 50/60Hz (IEC lead included)
- Fuse: T1AL
- Audio source:
  - USB
  - DAB+
  - Bluetooth audio player
- Bluetooth version: 5.0
- Inputs:
  - Paging mic. (XLR)
  - 3x stereo line (RCA)
  - call station (RJ45)
- Microphone input sensitivity: -41dBV
- Line input sensitivity: -12.5dBV
- Call station input : sensitivity: +4dBV
- Emergency control: 24V mute contacts and emergency audio input
- EMG input: sensitivity: -10dBV
- Signal to noise ratio:
  - Mic: 65 dB
  - Line: 73 dB
- Outputs: 5x stereo zones (RCA)
- Output impedance: line: 600 Ω
- THD +N: <0.1% @ 1kHz
- Monitor outputs: Stereo 3.5mm headphone jack (selected channel)
- Phantom power: +24V switchable for paging mic.
- Remote control connection: 8P8C (RJ45)
- Link connection: 2x 8P8C (RJ45)
- Frequency response: ±3dB: 20Hz - 20kHz
- Attenuation: -30dB (paging)
- Dimensions: 44 x 190 x 483 mm
- Weight: 2.608 kg

Further Product Information Below

Adastra RX45 Manual (PDF)

Adastra RX45 Advanced Audio Matrix Supplied With

- Adastra RX45 advanced audio zoning matrix
- IEC mains power lead

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Adastra RX45 Advanced Audio Matrix

Related products:

Adastra CS-5X Paging Microphone and Call Station for RX45 Audio Matrix

Adastra TR86 Touch Remote Wall Plate for RZ45 Audio Matrix

3M 3 pin XLR Male to Female DMX 512

W Audio 1.5m Phono Cable

W Audio 3m 3.5mm Jack - 2x Phono Plugs

W Audio 3m 2x Phono - 2x XLR Male Cable

W Audio 3m 2 x Phono - 2 x Mono 6.35mm Jack Cable

W Audio 2m 2 x XLR Female - 2 x Phono Cable

elumen8 INSTALL LSZH 2 Core 1.5mm Speaker Cable (SP2X1.5B) - 100m Drum, Black

elumen8 INSTALL LSZH 2 Core 2 x 2.5mm2 Speaker Cable SP2X2.5B, 500m Drum Black

UTP CAT5E Cable 2m Snag-less

Citronic RACK:6U Flight Case with 6U Rack Space for 19 inch Equipment

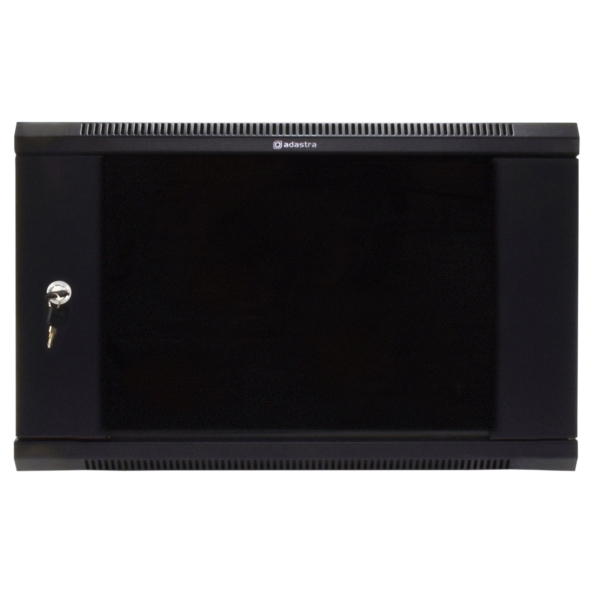

Adastra RC6U450 19 inch Installation Rack Cabinet 6U x 450mm Deep
