Adastra RMS1202 2-Channel Mixer-Amplifier, 2x 120W @ 4 Ohms or 100V Line

Name: Adastra RMS1202 2-Channel Mixer-Amplifier, 2x 120W @ 4 Ohms or 100V Line
Brand: Adastra
Price: 232.57 GBP
Availability: InStock

Price Each £193.81 (£232.57 Including VAT at 20%)

REF: JP106792

Quantity:

Adastra RMS1202 2-Channel Mixer-Amplifier, 2x 120W @ 4 Ohms or 100V Line

The Adastra RMS1202 2-Channel Mixer-Amplifier is a multi-channel 100V slave amplifier with independent outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is provided for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS-series amplifiers can be applied as high power slave units or equally as a fully independent zoning system for a multi-room installation.

Click Here for Printer Friendly Version

Adastra RMS1202 2-Channel Mixer-Amplifier Features

- Independent high efficiency class-D amplifiers
- Outputs for 100V or 4-16 Ohm speakers
- Separate channel inputs and optional global aux input
- Paging microphone input with vox override
- Switchable +20V phantom power for paging microphone
- 24V contacts for emergency muting

Adastra RMS1202 2-Channel Mixer-Amplifier Specifications

- Power supply170-264Vac, 50/60Hz (IEC)
- Fuse: T3.15AL
- Channel inputs: 2x L+R RCA or balanced terminal
- Microphone input: Balanced XLR (rear panel)
- Mic controls:
  - Gain
  - Bass
  - Treble
  - Vox (rear panel)
- Auxiliary input: L+R RCA
- Output controls:
  - Level
  - Bass
  - Treble
  - Ch/Aux switch
- Power:
  - 4Ω: 2x 120W
  - 100V Line: 2x 120W
- Output connection: 2 x 100V or 4 Ω (Euroblock terminal)
- Auxiliary output: L+R RCA
- Phantom power: +20V switchable (paging mic)
- Emergency control: 24V mute contacts (Euroblock terminal)

Physical:
- Dimensions (W x H x D): 482 x 42 x 252 mm
- Weight: 5.04 kg

Further Product Information Below

Adastra RMS1202 Manual (PDF)

Adastra RMS1202 2-Channel Mixer-Amplifier Supplied With

- Adastra RMS1202 amplifier
- IEC mains lead(s)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Adastra RMS1202 2-Channel Mixer-Amplifier, 2x 120W @ 4 Ohms or 100V Line

Related products:

Adastra CC5V 5.25 Inch Ceiling Speaker, 40W @ 8 Ohms or 100V Line - White

Mercury Heavy Duty 100V Line Speaker Cable, 2mm CSA, Double Insulated, 100 metre reel

W Audio 1.5m Phono Cable

W Audio 3m 3.5mm Jack - 2x Phono Plugs

Adastra RM406 Zone Mixer Amplifier, 6x 40W @ 4/8 Ohm or 100V Line with USB, SD, FM and Bluetooth

Adastra RMS605 5-Channel Mixer-Amplifier, 5x 60W @ 4 Ohms or 100V Line

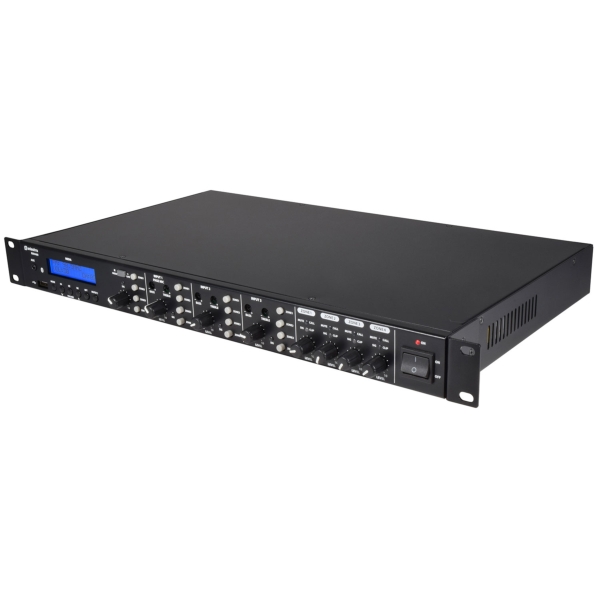

Adastra RM4460 4 Zone Mixer-Amplifier with USB player, FM tuner and Bluetooth, 4x 60W @ 4 Ohms or 100V Line
