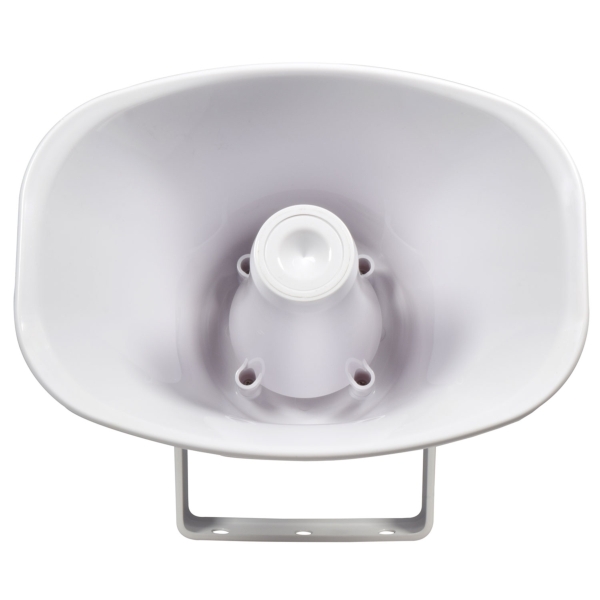

Adastra FH30V Horn Speaker, IP66, 30W @ 8 Ohms or 70V / 100V Line

Name: Adastra FH30V Horn Speaker, IP66, 30W @ 8 Ohms or 70V / 100V Line
Brand: Adastra
Price: 63.43 GBP
Availability: InStock

Price Each £52.86 (£63.43 Including VAT at 20%)

REF: JP107836

Quantity:

Adastra FH30V Horn Speaker, IP66, 30W @ 8 Ohms or 70V / 100V Line

The Adastra FH30V Horn Speaker with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant cable and junction box, fitted with a ceramic screw terminal block and thermal fuse. Surface mounting via a stainless adjustable U-bracket. Designed for voice announcements and alerts in commercial PA installations.

Click Here for Printer Friendly Version

Adastra FH30V Horn Speaker Features

- EN54-24 fire systems certification
- IP66 weatherproof
- 5VB fireproof ABS material
- 100V, 70V or 8 Ohm operation
- Ceramic terminals and thermal fuse

Adastra FH30V Horn Speaker Specifications

- Construction: 5VB fire-rated ABS housing, stainless metal bracket
- IP rating: IP66
- Fire rating: EN54-24 certified
- Connection: Hard-wired fire-resistant cable, ceramic terminal block
- Circuit protection: Thermal fuse
- Power @ 8 Ohms (RMS): 30W
- Tappings: 3.8W, 7.5W, 15W, 30W (100V) & 8 Ohms
- SPL @ 1W/1m: 113dB
- Frequency response: 300Hz - 6.5kHz

Physical:
- Dimensions (W x H x D): 282 x 203 x 300 mm
- Weight: 2.26 kg

Further Product Information Below

Adastra FH30V Wiring Guide (PDF)
