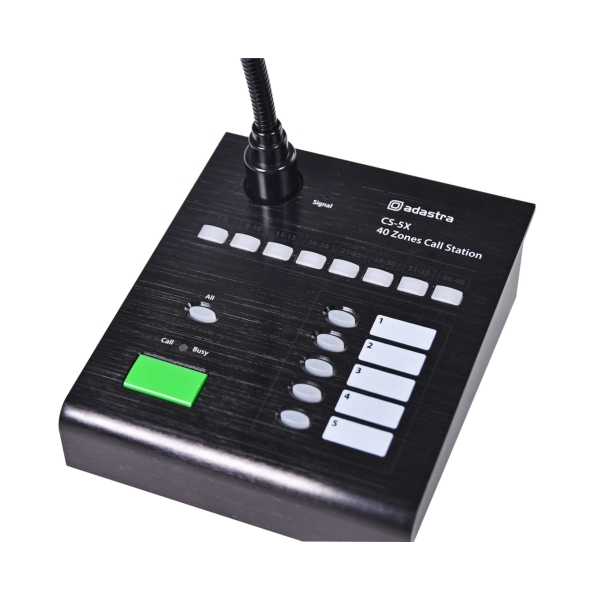

Adastra CS-5X Paging Microphone and Call Station for RX45 Audio Matrix

The Adastra CS-5X Paging Microphone and Call Station for RX45 Audio Matrix is a paging microphone with call station base, to be used with the RX45 audio matrix to create a comprehensive paging system. Zone assign buttons enable intuitive calling to any combination of up to 5 zones of the RX45 unit, with the Page button accordingly muting audio playback in those areas for clear vocal announcements. There is a choice of 8 paging chimes, and an AUX audio input for pre-recorded messages and alerts. A further row of Group buttons enables the user to assign paging for up to 8 different RX45 units that are linked as an expanded system, allowing up to 40 distinct pageable zones.

Click Here for Printer Friendly Version

Adastra CS-5X Paging Microphone and Call Station for RX45 Audio Matrix Features

- Custom designed for the RX45 Audio matrix
- Individual and multiple paging possible up to 40 zones
- Power and signal connection via the supplied RJ45 cable
- Optional 24Vdc in for connection up to 1km from RX45

Adastra CS-5X Paging Microphone and Call Station for RX45 Audio Matrix Specifications

- Power supply: 24Vdc, 500mA from RJ45 or optional adaptor
- Max. connection length: 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
- Capsule: Back electret condenser
- Polar pattern: Cardioid
- Controls:
  - Aux/Mic/Chime levels
  - Chime DIP switches
  - Group/zone/page buttons
- Connectors:
  - XLR
  - RJ45 (to RX45)
  - 24Vdc power jack
  - 3.5mm aux in
- Frequency response (-3dB): 150Hz - 20kHz
- Input level:
  - Mic: -46dBV
  - Aux: -10dBV
- Input impedance:
  - Mic: 600 Ω
  - Aux: 50k Ω
- Output level: 10dBV
- Output impedance (Balanced): 600 Ω
- S/N ratio: -60dB (all channels selected)
- Interface: RS-485 control
- Zone assign: 5 zones per RX45, any combination across 8 Group IDs

Physical:
- Dimensions: 450 x 140 x 125mm
- Weight: 0.653 kg

Further Product Information Below

Adastra RX45 Manual (PDF)

Adastra CS-5X Paging Microphone and Call Station for RX45 Audio Matrix Supplied With

- 1x CS-5X call station base unit
- 1x Adjustable gooseneck condenser microphone
- 1x Foam pop shield
- 1x RJ45 connection lead
