Adastra Outdoor Smart Pack 4 with 4x BH3 Speakers & A22 Compact Amplifier

Adastra Outdoor Smart Pack 4 with 4x BH3 Speakers & A22 Compact Amplifier Features

Adastra A22 Compact Stereo PA Amplifier, 2x 35W @ 4 ohms Features

- Supplied with I.R. remote control
- Supplied with 4 rotatable mounting brackets
- Compact and easy-to-use control panel
- Bluetooth receiver
- FM tuner
- USB / microSD mp3 player
- Microphone input with separate volume control

Adastra BH3 3-Inch Passive Speaker Features

- Weather resistant, IP44 rated
- 2-way, full-range sound production
- Spring terminal connection with protective cover
- Pan & tilt mounting brackets included

Adastra Outdoor Smart Pack 4 with 4x BH3 Speakers & A22 Compact Amplifier Specifications

Adastra A22 Compact Stereo PA Amplifier, 2x 35W @ 4 ohms Specifications

- Power supply: 230Vac, 50Hz (IEC)
- Output impedance: 4 - 8 Ohms (each channel)
- Output power: 8 Ohms: 2 x 25W rms / 2 x 40W max. (@ 1kHz 10% THD)
- Output power: 4 Ohms: 2 x 35W rms / 2 x 55W max. (@ 1kHz 10% THD)
- Inputs: line: Aux 1 (3.5mm), Aux 2 (L+R RCA), Aux 3 (L+R RCA)
- Input: mic: 6.3mm jack
- Controls: Mic Volume, Treble, Bass, Music Volume
- Audio source: USB/microSD player, FM tuner, Bluetooth
- Dimensions: 215 x 180 x 43mm
- Weight: 820g
- Antenna connection: F-type (FM tuner)

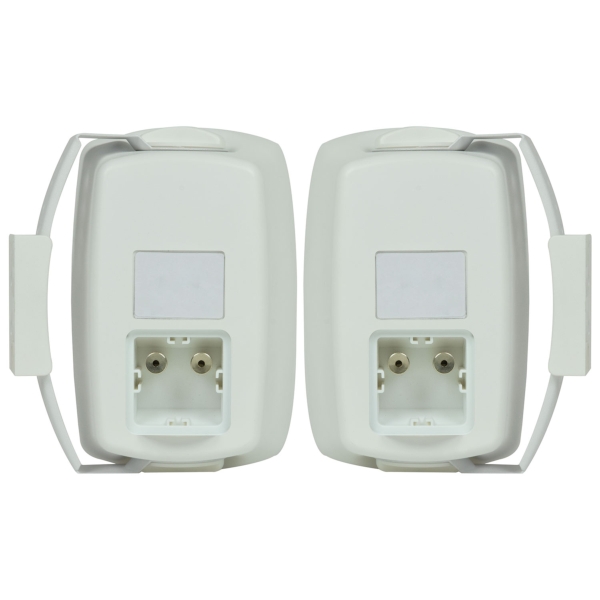

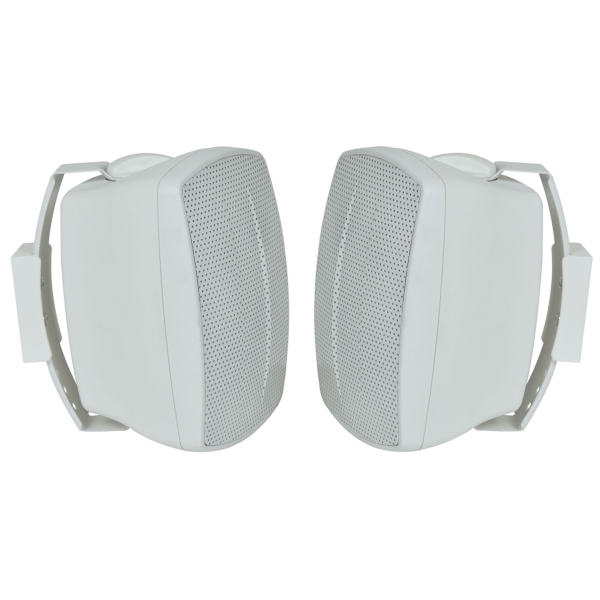

Adastra BH3 3-Inch Passive Speaker Specifications

- Impedance: 8Ω
- Dispersion Angle: 120°
- IP Rating: IP44
- HF Driver: 0.5-inch
- LF Driver: 3-inch
- Sensitivity: 86db
- Frequency Response: 110Hz - 20kHz
- Power Handling:
  - RMS: 30W
  - Max: 60W

Physical (Per Speaker):
- Dimensions: 164 x 107 x 102mm
- Weight: 0.83kg

Further Product Information Below

Adastra BH4-B Manual (PDF)

Adastra A22 Manual (PDF)

Adastra Outdoor Smart Pack 4 with 4x BH3 Speakers & A22 Compact Amplifier Supplied With

- Adastra A22 compact stereo PA amp
- 4x Adastra BH3 background speakers
