Adastra 3x WSP25-B Waterproof Sound Projectors with RM60 Mixer Amplifier Package - Black

Name: Adastra 3x WSP25-B Waterproof Sound Projectors with RM60 Mixer Amplifier Package - Black
Brand: Adastra
Price: 318.94 GBP
Availability: InStock

Price Each £265.78 (£318.94 Including VAT at 20%)

REF: JP107015

Quantity:

Adastra 3x WSP25-B Waterproof Sound Projectors with RM60 Mixer Amplifier Package - Black

The Adastra 3x WSP25-B Waterproof Sound Projectors with RM60 Mixer Amplifier Package offers music quality audio reproduction and intelligible speech in exposed environments where horn sound quality is not adequate. Widely used in rail platforms, visitor centres and other open public spaces, WSP25 sound projectors are able to withstand the elements whilst providing reliable operation. RM-series mixer-amps have a Bluetooth receiver, mp3, FM tuner and are specified in each package based on the maximum speaker Wattage tappings. It is recommended to tap down the power of some perimeter speakers so that the total combined speaker Watts is <90% the amplifier max output power. Using lower tappings on more speakers can allow additional speakers to be added to the line, again observing the <90% rule.

Click Here for Printer Friendly Version

Adastra 3x WSP25-B Waterproof Sound Projectors with RM60 Mixer Amplifier Package Features

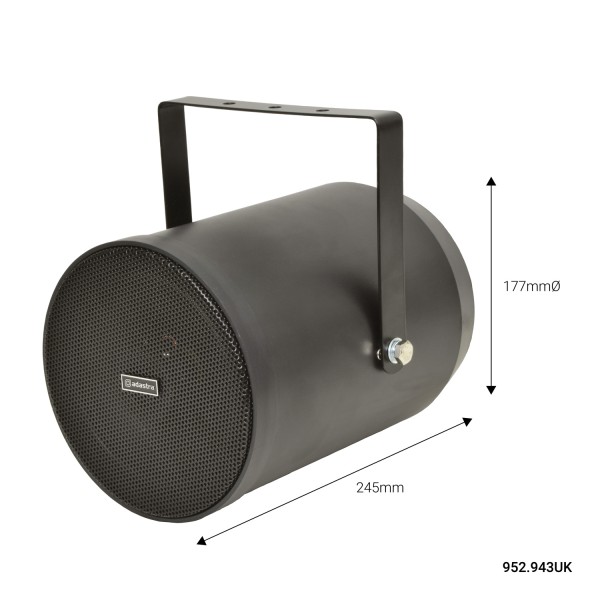

Adastra WSP25-B 6.5 Inch Waterproof Sound Projector, IPX5, 25W @ 8 Ohms or 100V Line - Black Features

- Adjustable steel mounting bracket
- Weatherproof ABS enclosure

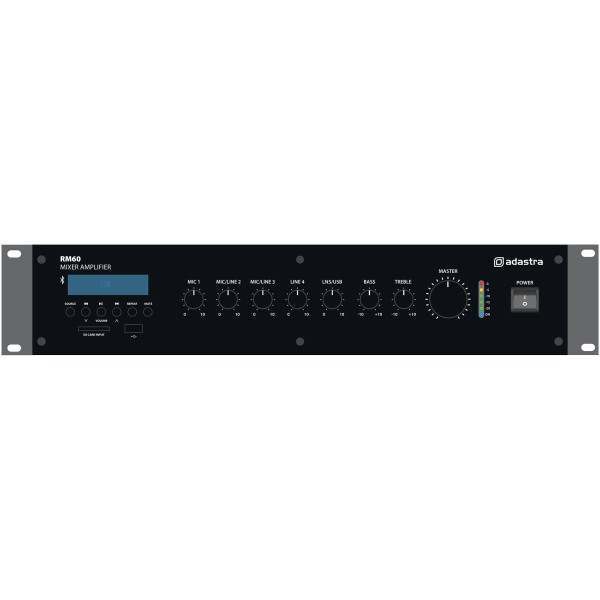

Adastra RM60 5-Channel Mixer-Amplifier, 60W @ 8 Ohms or 100V Line Features

- 2U 19 inch rack mountable (rack ears supplied)
- XLR input with switchable +20V phantom power - ideal for condenser microphones and paging microphones with chimes
- 2 x mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output
- Switchable 'voiceover' feature
- Inbuilt media player with SD, USB and Bluetooth inputs and integrated FM radio tuner
- 100V line or 4-16 ohm speaker output
- 24V emergency mute contacts
- Option for mains or 24Vdc power
- Editable Bluetooth ID for unique pairing

Adastra 3x WSP25-B Waterproof Sound Projectors with RM60 Mixer Amplifier Package Specifications

Adastra WSP25-B 6.5 Inch Waterproof Sound Projector, IPX5, 25W @ 8 Ohms or 100V Line - Black Specifications

- Housing material: ABS
- Colour: Black
- Woofer: 165mmØ (6.5 inch) reinforced cone
- Tweeter: Concentric 25mm (1 inch) mylar dome
- IP Rating: IPX5
- Frequency Response: 100Hz - 17kHz
- Power: 25W @ 8Ω
- SPL @ 1W/1m: 92dB
- Tappings: 100v line - 5W, 10W, 20W
- Dimensions: 245 x 177mmØ
- Weight: 1.55kg
- Cable Length: 350mm

Adastra RM60 5-Channel Mixer-Amplifier, 60W @ 8 Ohms or 100V Line Specifications

- Power output (RMS): 60W
- Speaker outputs:
  - 100V
  - 8Ω
  - COM terminals
- Mains power 110/240Vac, 50/60Hz (IEC)
- DC power 24Vdc (screw terminals)
- Inputs:
  - XLR (Mic)
  - 2 x 6.3mm jack (mic/line)
  - 2 x RCA (line)
- Input sensitivity:
  - Mic 1 (balanced) -53dBV
  - Line (unbalanced) -15dBV (-18.5dBV line 5)
- Input impedance:
  - Mic 1: 5kΩ
  - Inputs 2-5: 1kΩ
- Line output: RCA
- Controls:
  - Mic 1
  - Mic/Line 2+3
  - Line 4+5
  - Bass
  - Treble
  - Master Volume
- Equalizer:
  - Bass: 100Hz ±10dB
  - Treble: 10kHz ±10dB
- Rear panel switches:
  - Phantom Power
  - Vox
  - Mic/Line (2 + 3)
- Phantom power: +20V (mic 1 input)
- Audio source:
  - USB/SD player
  - FM tuner
  - Bluetooth receiver
- Emergency control: 24V contacts - mute all except Mic.1 when triggered
- Bluetooth version: 5.0
- THD: <1.0%
- Dimensions: 433 x 320 x 89mm
- Weight: 5.98kg

Further Product Information Below

Adastra RM-Series Manual (PDF)

Adastra 3x WSP25-B Waterproof Sound Projectors with RM60 Mixer Amplifier Package Supplied With

- 1x Adastra RM60 mixer-amp
- 3x Adastra WSP25-B waterproof speakers
- 1x 100m speaker cable

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Adastra 3x WSP25-B Waterproof Sound Projectors with RM60 Mixer Amplifier Package - Black

Related products:

Adastra WSP25-B 6.5 Inch Waterproof Sound Projector, IPX5, 25W @ 8 Ohms or 100V Line - Black

elumen8 INSTALL LSZH 2 Core 1.5mm Speaker Cable (SP2X1.5B) - 100m Drum, Black

elumen8 INSTALL LSZH 2 Core 2 x 2.5mm2 Speaker Cable SP2X2.5B, 100m Drum Black

W Audio 3m 3.5mm Jack - 2x 6.35mm Mono Jack Cable

W Audio 1.5m Phono Cable

W Audio 3m 3.5mm Jack - 2x Phono Plugs

W Audio 3m 2 x Phono - 2 x Mono 6.35mm Jack Cable

W Audio 2m 2 x XLR Female - 2 x 6.35mm Mono Jack Cable

W Audio 2m 2 x XLR Male - 2 x Phono Cable

W Audio 2m 2 x XLR Female - 2 x Phono Cable

W Audio 0.25m XLR Female - 6.35mm Jack Stereo Cable

3M 3 pin XLR Male to Female DMX 512

Citronic RACK:4U Flight Case with 4U Rack Space for 19 inch Equipment

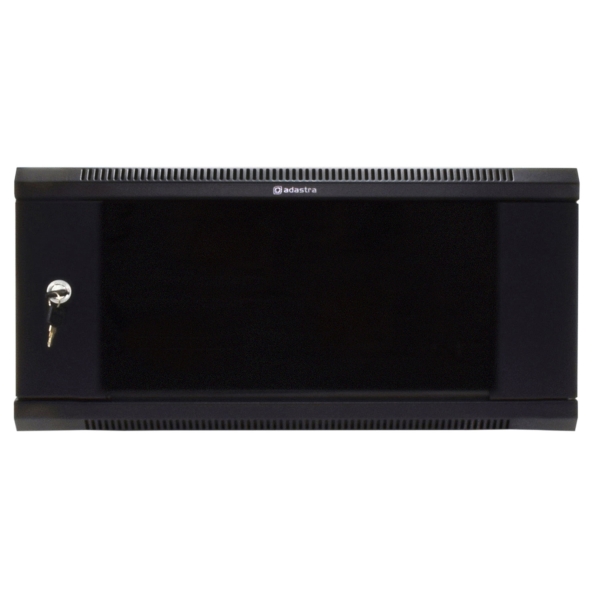

Adastra RC4U450 19 inch Installation Rack Cabinet 4U x 450mm Deep
