AKG WMS470 D5 Vocal Set Wireless Microphone System - Channel 38 (Band 9U)

AKG WMS470 D5 Vocal Set Wireless Microphone System Features

AKG SR470 Radio Microphone Receiver Features

- Environment scan and rehearsal functions For secure operation even in crowded radio frequency environments
- Programmable multicolor backlight display Clear visual information of selectable warning signals
- External antenna connectors Connect splitters, remote antennas and long cable runs to multi channel systems
- Enhanced automatic setup with channel preview For quick and easy system setup
- Pre-coordinated TV channel frequency presets Maximum channel density for multichannel systems

AKG HT470 Hand Held Dynamic Microphone Features

- Infrared synchronization For instant transmitter setup
- Up to 50mW transmission power Maximum radio signal strength for long-distance applications
- Integrated charging contacts Quick charging of a standard NiMH battery inside the transmitter
- Pilot Tone transmission For transmitter battery status monitoring and tone code squelch
- Leading edge dipole-antenna design Optimum performance even when the antenna is covered

AKG D5 WL1 Dynamic Capsule Features

- D5 microphone element with threaded connection
- For use with AKG wireless systems
- Supercardioid Polar Pattern which provides a focused pickup pattern for enhanced feedback and noise suppression
- Integrated pop filter
- Patented Laminated Varimotion Diaphragm
- Self-cleaning contacts

AKG WMS470 D5 Vocal Set Wireless Microphone System Specifications

- Carrier Frequency Range: Channel 38 / Band 9U, 606.5 - 630 MHz (License Required)

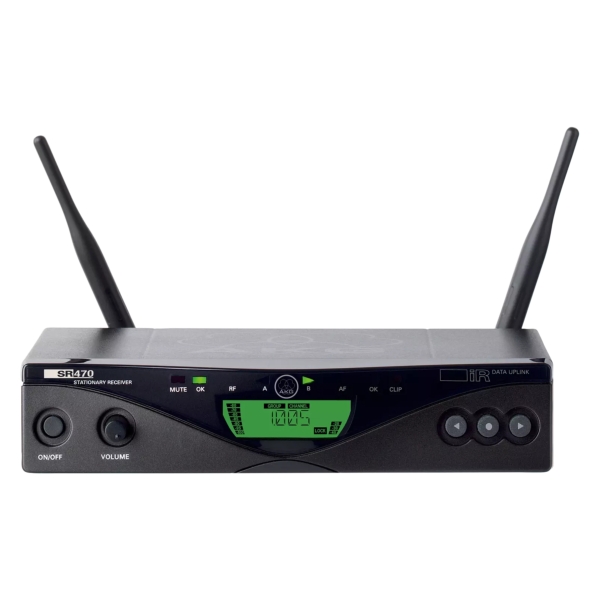

AKG SR470 Radio Microphone Receiver Specifications

- Switching bandwidth: 30.5 MHz (depending on local regulations)
- Modulation: FM
- Sensitivity: 6 dBµV / -100 dBm
- Receiver type: Super heterodyne
- Diversity system: µC controlled space diversity
- Audio bandwidth: 35 to 20,000 Hz
- THD at 1 kHz: <0.3%
- Signal-to-noise: 120 dB(A)
- Audio outputs:
  - Balanced XLR, switchable to -30 or 0 dBm
  - Unbalanced 6.35 mm (¼-inch) Jack
- Audio output level: +9 dBu (max.)
- Antenna inputs: 2x 50Ω BNC female connectors
- Transmitter battery indication: Low Battery
- Power supply: 12 V / 500 mA DC

Physical:
- Dimensions (W x H x D): 200 x 44 x 190 mm
- Weight: 0.972 kg

AKG HT470 Hand Held Dynamic Microphone Specifications

- Audio frequency bandwidth: 35 - 20,000 Hz
- Signal to Noise: 120 dB-A
- THD at 1 kHz: 0.7 Prozent
- Operating temperature range: -10 to 55°
- Peak deviation: 48 kHz
- Nominal deviation: 20 kHz
- Radio Output Power (min/max): 10 to 50 mW
- Switching bandwidth: 30 MHz
- Recommended simultaneous channels: 24
- Number of selectable frequencies: 1,220 (selectable in 25kHz steps)
- Frequency Selection: Selectable frequency in 25kHz steps
- Radio range (Line of sight): 100m (depending on antenna system)
- Modulation: FM (Frequency Modulation)
- Switchable RF power: No
- Pilot Tone: Yes

Battery 1:
- Battery type: HR 6 AA (NiHM) rechargeable
- Number of batteries: 1
- Operating time: 8 h

Battery 2:
- Battery type: LR6 AA alkaline
- Number of batteries: 1
- Operating time: 7 h

Physical:
- Dimensions (W x H x D): 51 x 237 x 51 mm
- Weight: 0.24 kg

AKG D5 WL1 Dynamic Capsule Specifications

- Type: Dynamic
- Polar Pattern: Supercardioid
- Capsule: Patented laminated Varimotion diaphragm
- Isolation: Dual shock mount capsule and integrated pop filter
- Grille: Spring-steel wire-mesh
- Frequency Response: 70 - 20,000 Hz
- Sensitivity: 2.6 mV/Pa
- Maximum SPL: 147dB @ 1% / 156dB @ 3%

Further Product Information Below

AKG WMS470 Series Manual (PDF)

AKG WMS470 Series Data Sheet (PDF)

AKG WMS470 Series Quick Reference Guide (PDF)

- Carrier Frequency Range: Channel 38 / Band 9U, 606.5 - 630 MHz (License Required)

AKG WMS470 D5 Vocal Set Wireless Microphone System Supplied With

- 1x AKG SR470 Receiver
- 1x AKG HT470 Hand Held Transmitter
- 1x Stand adapter
- 1x RMU4000 Rack mount kit
- 1x Universal power supply
- 1x AA size battery
- 2x BNC UHF Antennas
