AKG Perception Sport Set Wireless Microphone System - Channel 38 - 42 (Band 1-U)

AKG Perception Sport Set Wireless Microphone System Features

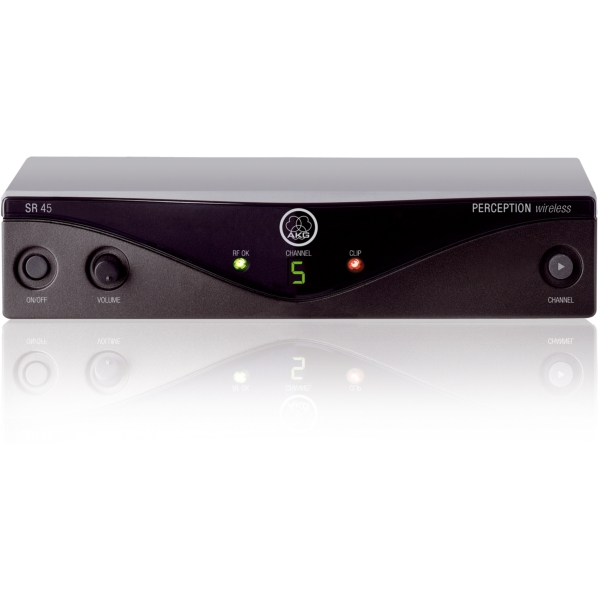

AKG SR45 Wireless Receiver Features

- 30MHz selection bandwidth
- Simultaneous use of up to 6 channels
- Professional balanced XLR and 6.35mm (¼-inch) jack output
- Audio clip and RF control LED on receiver
- Switched mode power supply
- Adjustable squelch level

AKG PT45 Wireless Body Pack Transmitter Features

- Eight hours of operation from a single AA-size battery
- Professional three-pin mini XLR connector compatible with guitar cables, headset and instrument mics
- Gain control on transmitter for immediate volume adjustment
- Noiseless on/off/mute switch
- Compact and rugged body-pack design

AKG C544 L Headworn Moisture Resisting Sports Microphone with 3-Pin Mini-XLR Features

- Flexible shock mount For efficient suppression of mechanical and body noise
- Moisture shield Ensuring a dry microphone capsule
- Includes four drop rings For sweat and water protection
- Fully rugged sports headband For secure fit in all situations and movements
- Cardioid polar pattern For problem-free use with high ambient noise rejection

AKG Perception Sport Set Wireless Microphone System Specifications

- Carrier Frequency Range: Channel 38 to 42 / Band 1-U, 606.5 - 642 MHz (License Required)

AKG SR45 Wireless Receiver Specifications

- Transmitter Synchronisation: Manual
- HiQnet compatible: No
- Operating temperature range: -10 to 55 Celsius
- Radio Sensitivity: -100 dBm

Audio:
- Audio Frequency bandwidth: 40 to 20,000 Hz
- Signal to Noise: 105 dB-A
- THD at 1 kHz: 0.8 %

Radio:
- Switching bandwidth: 30 MHz
- Recommended simultaneous channels: 5
- Number of selectable frequencies: 8 Fixed
- Frequency Selection: Fixed frequency
- Radio Range (Line of Sight): 30m
- Switchable RF Power: no
- Modulation: FM
- Encryption: No encryption
- Pilot Tone: no

Audio Outputs 1:
- Amount: 1
- Type: Balanced XLR
- Gender: Male
- Contacts: 3-pin
- Note: Balanced audio output adjustable from mic to line level. Output level at rated deviation

Audio Outputs 2:
- Amount: 1
- Type: 6.35mm (¼-inch) Mono Jack
- Contacts: 3-pin
- Note: Unbalanced audio output

Electrical:
- Internal Power Supply: no
- Type: DC Socket
- Voltage: 12 to 12 V

Physical:
- Rack size: ½ Rack width (9.5-inch)
- Rack height: 1 U
- Body: Plastic
- Finish: Black
- Dimensions (W x H x D): 200 x 44 x 150 mm
- Weight: 0.36 kg

AKG PT45 Wireless Body Pack Transmitter Specifications

- Audio frequency bandwidth: 40 - 20,000 Hz
- Signal to Noise: 105 dB-A
- THD at 1 kHz: 0.8 Prozent
- Operating temperature range: -10 to 55 Celsius
- Peak deviation: 45 kHz
- Nominal deviation: 15 kHz
- Transmitter Synchronisation: Manual
- Switching bandwidth: 30 MHz
- Recommended simultaneous channels: 5
- Number of selectable frequencies: 8 Fixed frequencies
- Frequency Selection: Fixed frequency
- Radio range (Line of sight): 30m
- Switchable RF power: no
- Modulation: FM (Frequency Modulation)
- Encryption: No encryption
- Pilot Tone: No

Audio Input:
- Type: Mini XLR
- Gender: Female
- Contacts: 3-pin
- Maximum audio level: 12 dB
- Rated Impedance: 1 Ω

Battery:
- Number of batteries: 1
- Operating time: 8 - 14 hours
- Battery 1
  - Battery type: LR6 AA alkaline Battery
  - Number of batteries: 1
  - Operating time: 8 h
- Battery 2
  - Number of batteries: 1
  - Operating time: 8 h

Physical:
- Body: Plastic
- Finish: Black
- Dimensions (W x H x D): 60 x 75.5 x 30 mm

AKG C544 L Headworn Moisture Resisting Sports Microphone with 3-Pin Mini-XLR Specifications

- Type: Pre-Polarized Condenser Microphone
- Polar Pattern: Cardiod
- Equivalent Noise Level: 30 dB-A
- Audio Frequency Bandwidth: 80 - 20,000 Hz
- Sensitivity: 25 mV/Pa (U=9V, R=10 kΩ)
- Impedance @ 1kHz: <200 Ω
- Recommended Load Impedance: 2000 Ω
- Application:
  - Live Vocal
  - Assisted Listening
  - Sound Reinforcement
  - Presentation
  - Retail

Connections:
- Type: Balanced Mini-XLR
- Gender: Female
- Contacts: 3-Pin

Pantom Power:
- Voltage: 9V (2V - 10V)
- Current: < 2 mA (< 500uA if U-9V, R=10 kΩ)

Physical:
- Dimensions (W x H x D): 145 x 70 x 110 mm
- Cable Length: 1.5 m
- Weight: 0.03 kg

Further Product Information Below

AKG Perception Wireless Series Manual (PDF)

AKG Perception Wireless Series Quick Reference Guide (PDF)

- Carrier Frequency Range: Channel 38 to 42 / Band 1-U, 606.5 - 642 MHz (License Required)

AKG Perception Sport Set Wireless Microphone System Supplied With

- 1x AKG SR45 Receiver
- 1x AKG PT45 Body-pack transmitter
- 1x AKG C544 L Headset microphone
- 1x Universal power supply
