AKG Helical Passive Circular Polarised Directional Radio Microphone Antenna

Price Each £525.91 (£631.09 Including VAT at 20%)

REF: JP94715

Quantity:

AKG Helical Passive Circular Polarised Directional Radio Microphone Antenna

The AKG Helical Passive Circular Polarised Directional Radio Microphone Antenna is a passive circular polarized directional wide-band UHF antenna which can be used as a transmitting or receiving antenna for wireless microphones and in-ear monitoring systems. It operates in a frequency range from 470 to 740 MHz and provides an antenna gain of 9dB. This circular polarized HELICAL antenna is specially designed for tour sound, sports and broadcast applications where long range FOH positions of many hundreds of feet often require a high gain. With the included universal thread adapter it can be mounted on floor stands with both ⅜-inch or ⅝-inch screws. The HELICAL antenna comes with a durable, water resistant nylon cover which also helps to compress the antenna to easily fit inside a rack drawer.

Click Here for Printer Friendly Version

AKG Helical Passive Circular Polarised Directional Radio Microphone Antenna Features

- Circular polarized antenna design for high directionality and strong signal reception
- Works as transmitting and receiving antenna for wireless microphones and in-ear monitoring
- 9dB antenna gain for long distance applications
- Operates in a wide frequency range 470 to 740 MHz for universal use worldwide
- Foldable from 12-inch extended to 3-inch compressed to easily fit inside a rack drawer

AKG Helical Passive Circular Polarised Directional Radio Microphone Antenna Specifications

- Switching bandwidth: 470 to 952 MHz
- Antenna gain: 9 dBi
- Covering angle: 63°

Antenna Output:
- Type: BNC
- Gender: Female
- RF Input/Output: (50 Ω)
- Recommended Load Impedance: 50 Ω

Physical:
- Finish: Plastic
- Finish: Black
- Dimensions (W x H x D): 355 x 355 x 305 mm
- Weight: 1.2 kg

Further Product Information Below

AKG Helical Data Sheet (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

AKG Helical Passive Circular Polarised Directional Radio Microphone Antenna

Related products:

AKG AB4000 EW Radio Microphone Antenna Booster

AKG SRA2 EW Passive Directional Wide-Band UHF Radio Microphone Antenna

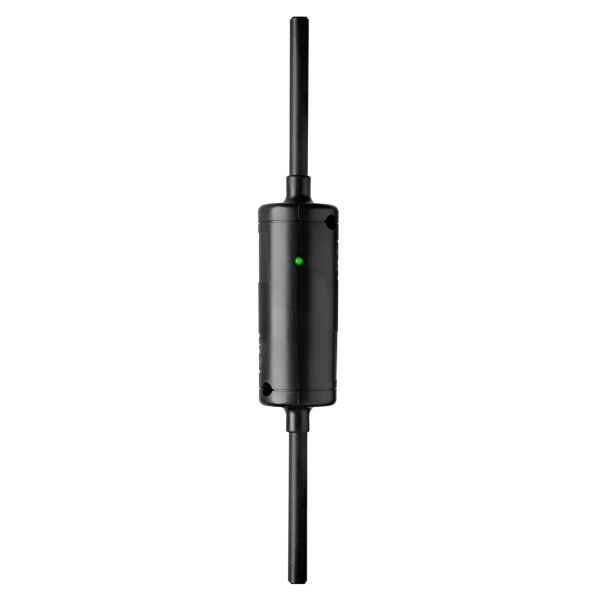

AKG RA4000 B/EW Active Omni-Directional Wide-Band UHF Radio Microphone Antenna

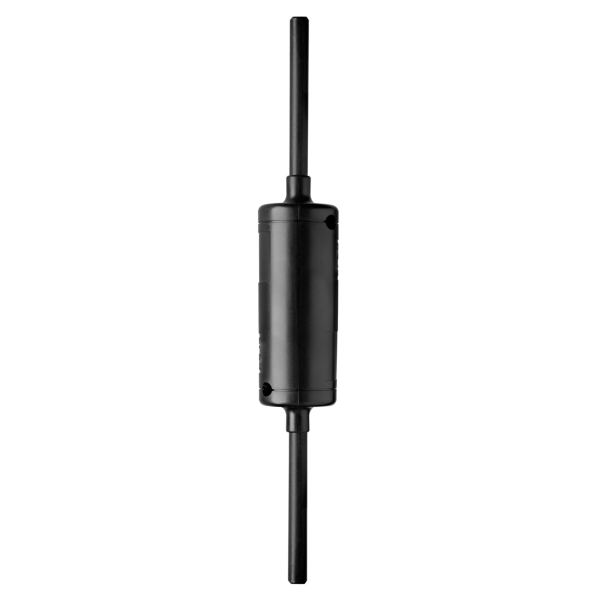

AKG RA4000 EW Passive Omni-Directional Wide-Band UHF Radio Microphone Antenna

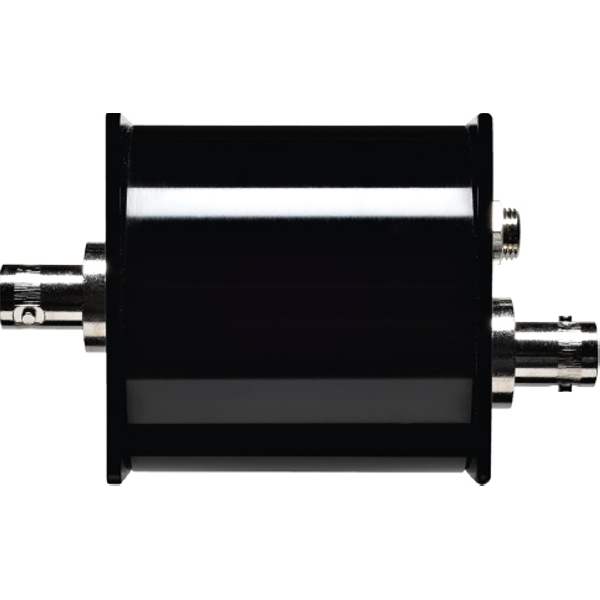

AKG ASU4000 Remote Radio Microphone Antenna Power Supply Unit
