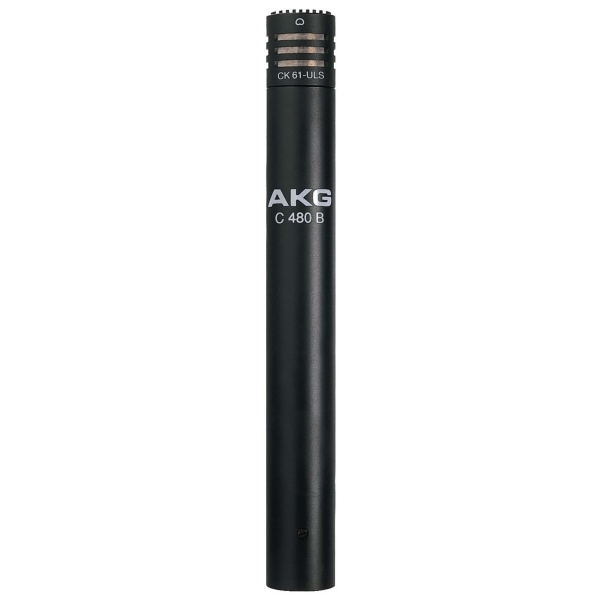

AKG C480B-CB-61 Modular Condenser Microphone with AKG C480 B Pre-Amplifier and AKG CK61-ULS Cardioid Capsule

Price Each £692.54 (£831.05 Including VAT at 20%)

REF: JP94161

Quantity:

AKG C480B-CB-61 Modular Condenser Microphone with AKG C480 B Pre-Amplifier and AKG CK61-ULS Cardioid Capsule

The AKG C480B-CB-61 Modular Condenser Microphone with AKG C480 B Pre-Amplifier and AKG CK61-ULS Cardioid Capsule is a combination of C480 B pre-amp and the CK61 ULS capsule. It offers excellent audio quality and maximum flexibility. The electronic circuitry of the C480 B comes with a transformerless output stage and assures completely linear transfer characteristics across the entire frequency range, while achieving self-noise figures close to the theoretical minimum. The CK61 capsule is characterized by a ruler-flat frequency response and an unmatchable consistent cardioid polar pattern. It is the ideal choice for critical recording and live-sound applications where consistent suppression of off-axis sound is an important requirement. The CK61 ULS is widely used in broadcast and recording studios as well as on stages worldwide.

Click Here for Printer Friendly Version

AKG C480B-CB-61 Modular Condenser Microphone with AKG C480 B Pre-Amplifier and AKG CK61-ULS Cardioid Capsule Features

- Hypercardioid polar pattern with excellent on-axis response for pure pristine sound quality at high gain before feedback
- Self-cleaning contacts ensure reliable operation and long life
- Carefully handcrafted in Vienna, Austria meticulous attention to detail ensures highest quality
- High quality cardioid capsule with exceptionally flat on-axis frequency response
- High temperature stability, reliable construction
- Gold plated, self-cleaning connector pins for high resistance to humidity
- Includes windshield

AKG C480B-CB-61 Modular Condenser Microphone with AKG C480 B Pre-Amplifier and AKG CK61-ULS Cardioid Capsule Specifications

AKG C480 B ULS Professional Microphone Pre-Amplifier without Capsule Specifications

- Preattenuation Pad: +6 db, -10 dB
- Bass cut filter: 100 Hz
- Recommended load impedance: 2000 Ω

Connections:
- Type: Balanced XLR
- Gender: Male
- Contacts: 3-Pin

Pantom Power:
- Voltage: 48 V
- Current: 2 mA

Physical:
- Dimensions (W x H x D): 21 x 173 x 21 mm

AKG CK61 ULS Cardioid Condenser Microphone Capsule for AKG C480 B Pre-Amplifier Specifications

- Polar Pattern: Cardiod
- Audio Frequency Bandwidth: 20 - 20,000 Hz
- Equivalent Noise Level: 11 dB-A
- Sensitivity: 20 mV/Pa
- Signal to Noise: > 81 dB-A
- Electrical Impedance: < 150 Ω
- Recommended Load Impedance: > 2000 Ω

Pantom Power:
- Voltage: 48 V
- Current: 2 mA

Physical:
- Dimensions (W x H x D): 21 x 27 x 21 mm

Further Product Information Below

AKG ULS Series Manual (PDF)

AKG C480B-CB-61 Data Sheet (PDF)

AKG C480B-CB-61 Modular Condenser Microphone with AKG C480 B Pre-Amplifier and AKG CK61-ULS Cardioid Capsule Supplied With

- 1x AKG C480 B Pre-Amp
- 1x AKG CK61 ULS Capsule
- 1x W32 Windscreen
