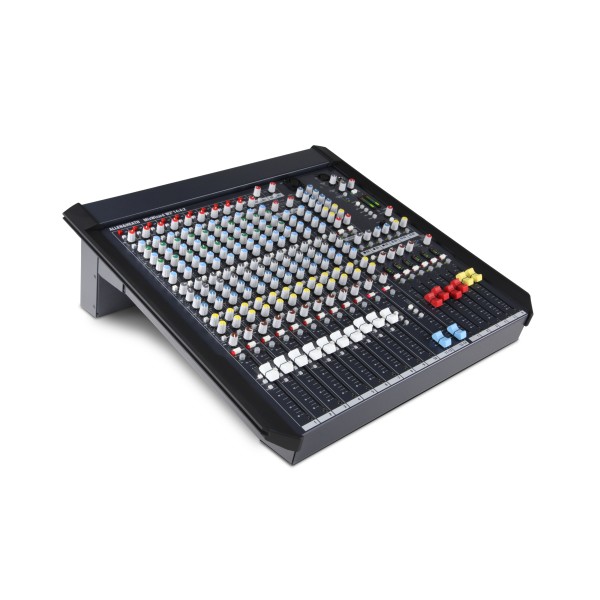

Allen & Heath MixWizard 4 14:4:2 Dual Function 4 Bus Analogue Mixer

Allen & Heath MixWizard 4 14:4:2 Dual Function 4 Bus Analogue Mixer Features

- 19 inch Rack mountable
- 10 mic/line inputs with balanced XLR/TRS jack, insert and direct output
- 100mm faders
- Reverse switches swap the function of the group and aux masters in Monitor or Dual Mode applications
- 6 Aux sends - switchable pre/post fade
- 4 Audio groups
- 2 Dual Stereo inputs with separate gain and "ON" switches allowing inputs to be selected independently or mixed together
- 4 band EQ with 2 swept mids
- 6 x 2 Matrix for providing feeds for in ear monitors, delay speakers, video, broadcast and more
- Oscillator and Pink Noise generator for line-up and speaker testing
- Tri-colour, 12 segment bargraph metering
- +48V Phantom Power
- Signal and Peak LEDs
- Talkback Mic XLR with trim
- Lamp socket
- USB multitrack recording option

Allen & Heath MixWizard 4 14:4:2 Dual Function 4 Bus Analogue Mixer Specifications

Maximum output level
- XLR: +26dBu into 600 Ω max load
- Jack: +21dBu into 2 kΩ max load

Internal headroom
- Channels: +21dB
- Mix: +23dB
- Meters: 3 colour LED, quasi peak response
- Sensitivity: 0VU = +4dBu at XLR output
- Master meters: 12 segment -30 to +16dB
- Channel meters: 2 segment -12, +16dB (5dB before clip)
- Frequency response: 20Hz to 50kHz ±0.5dB
- THD+n at +10dBu 1kHz: Channel to mix out < 0.004%
- Channel HPF: 12dB/octave below 80Hz

Crosstalk at 1kHz
- Fader shutoff: >90dB
- Mute shutoff: >90dB
- Inter channel: >90dB

Noise, rms 22Hz to 22kHz
- Mic EIN -127dB
- Residual output noise: < -96dBu (-100dB S/N)
- LR unity fader mix noise: < -84dBu (-88dB S/N)
- Group unity fader noise: < -90dBu (-94dB S/N)

Mono EQ
- HF; Shelving, ±15dB, 12kHz
- HM: Peak/dip, ±15dB, 500Hz to 15kHz, Q=1.8
- LM: Peak/dip, ±15dB, 35Hz to 1kHz, Q=1.8
- LF: Shelving, ±15dB, 80Hz

Stereo EQ
- HF: Shelving, ±15dB, 12kHz
- HM: Peak/dip, ±15dB, 2.5kHz, Q=1.8
- LM: Peak/dip, ±15dB, 250Hz, Q=1.8
- LF: Shelving, ±15dB, 80Hz

Power supply
- 100-240V, 50/60Hz auto sensing, IEC input
- Power consumption: 45W max
- Mains fuse: T630mA L 20mm

Weight
- Unpacked: 13kg (28lbs)
- Packed: 16kg (35lbs)
