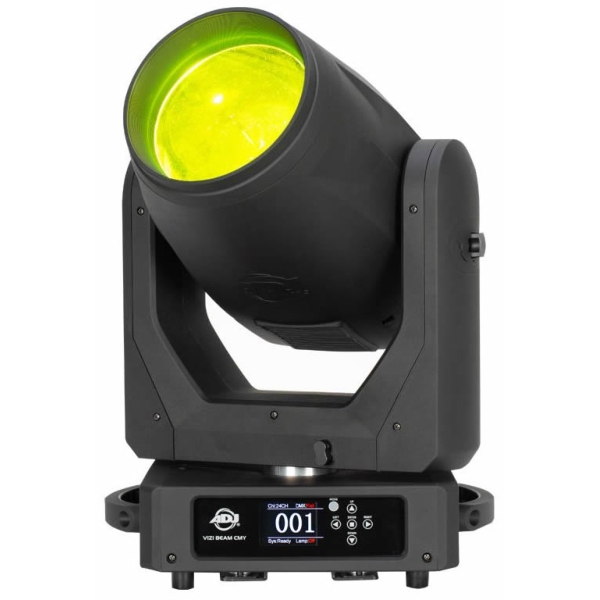

ADJ Vizi Beam CMY Discharge Moving Head

Buy 2+ units for £1852.12 Inc VAT. To Do So, Click Here to Register.

Price Each £808.08 (£969.70 Including VAT at 20%)

REF: JP108717

Quantity:

ADJ Vizi Beam CMY Discharge Moving Head

The ADJ Vizi Beam CMY Discharge Moving Head is a cutting-edge moving head beam fixture designed for the modern lighting designer. Featuring a powerful 310W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance.
Unlock a spectrum of possibilities with CMY color mixing, paired with a 14-color dichroic wheel that includes CTO (3200K), CTB (9000k) & UV filters). In addition, the fixture offers a versatile GOBO wheel loaded with 17 static patterns (including 4 are beam reducers) and a dynamic GOBO shake effect. Users can also enjoy the flexibility of on-board wireless DMX, motorized focus, and 16-bit fine focus for meticulous control.
The fixture boasts advanced features, including 2 rotating prisms (16-facet circular & 6-facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability during transportation and rigging. With a color LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.
Designed for convenience, it features outdoor-rated locking connections for power daisy-chaining and 5-pin DMX sockets. With multi-voltage operation and CE approval, the Vizi Beam CMY is a versatile and reliable lighting solution for any event or venue. Enhance your lighting experience with the Vizi Beam CMY - where innovation meets performance.

Click Here for More Info.

ADJ Vizi Beam CMY Discharge Moving Head Features

- CMY Color Mixing
- On-Board Wireless DMX
- Motorized Focus + 16-bit fine focus
- 2-degree beam angle
- Frost Filter to create wash effect
- High quality glass lens
- 2 Rotating prisms:
- 0-100% smooth dimming
- Pan/Tilt locks
- Various strobe speeds
- OTA, wireless, firmware updates
- Fan cooled

ADJ Vizi Beam CMY Discharge Moving Head Specifications

Source:
- OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
- Color temperature: 7850K (± 500K)
- CRI: 86 (± 5)

Color Wheel:
- 14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)
- Indexable color wheel for split colors
- Separate Multi-Color Effect

GOBO Wheel:
- 17 static GOBOs + open (4 GOBOs are beam reducers)
- GOBO Shake Effect

Prism Wheels:
- 2 Rotating prisms
- 16 facet circular and 6 facet linear prisms
- Prisms Overlay

Control:
- Protocols: DMX512 & RDM
- Control Mode: DMX512 & Manual (On-board Controls)
- 2 DMX Channel Modes: 20/24 Channels
- Color LCD display with 4-button function menu
- 0-100% smooth dimming
- Various strobe speeds
- With Wired Digital Communication Network

Pan/Tilt:
- Pan: 540 degrees (plus 16-bit fine pan)
- Tilt: 270 degrees (plus 16-bit fine tilt)
- 3 Phase, High Speed, Pan/Tilt motors

Connections:
- DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
- Power Connections: Outdoor locking In/Out connections to daisy chain power

Electrical:
- Multi-voltage operation: 100-240V, 50/60Hz
- Max power consumption: 410W (@120V), 390W (@230V)
- Fuze Protected: 6.5A

Certification / Qualification:
- CE
- cETLus (Pending)

Physical:
- Dimensions (W x H x D): 364 x 454.8 x 248 mm
- Weight: 17.5 kg

Further Product Information Below

ADJ Visi Beam CMY Manual (PDF)

ADJ Visi Beam CMY DMX Chart (PDF)

ADJ Vizi Beam CMY Discharge Moving Head Supplied With

- 2x Omega Brackets (107 Type)
- 2M, outdoor locking 14AWG power cord
