ADJ Vizi Beam 12RX Discharge Moving Head

Buy 2+ units for £2464.25 Inc VAT. To Do So, Click Here to Register.

Price Each £1,075.15 (£1,290.18 Including VAT at 20%)

REF: JP101760

Quantity:

ADJ Vizi Beam 12RX Discharge Moving Head

The ADJ Vizi Beam 12RX is high powered beam moving head powered by the brilliant 260W Philips Platinum 12R LL MSD Discharge Lamp (6,000 hr.). It produces a razor sharp 2-degree beam of light. It comes with 14 colors + open (with color indexing), 16 fixed GOBOs + open, two rotating prisms and a frost filter for wash effects.
The Vizi Beam 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX In/Out connections and Locking Power In/Out connections to daisy chain the power from one fixture to the next. It has a color display with 4-button internal menu system.

Click Here for More Info.

ADJ Vizi Beam 12RX Features

- Motorized Focus + 16-bit fine focus
- 2-degree beam angle
- Frost Filter to create wash effect
- High quality glass lens
- 2 Rotating prisms: 6-facet Linear and 24-facet Circular
- 0-100% smooth dimming
- Various strobe speeds
- USB firmware update port
- Fan cooled

ADJ Vizi Beam 12RX Specifications

Source:
- Philips Platinum 12R Long Life Discharge
- Lamp Wattage: 260W
- Average Lifetime: 6,000 hrs
- Color Temperature : 7800K
- CRI: 74
- Lux: 70,000 lux @20m

Optics:
- Beam Angle: 2-degrees
- High Quality Glass Lens
- 2 Prisms
- 24-facet rotating circular prism
- 6-facet rotating linear prism
- Linear Frost filter
- Motorized 16bit Focus

Control:
- 2 operational Modes: Internal Programs or DMX Control
- 2 DMX Channel Modes: 14 or 16 Channels
- RDM compatible (Remote Device management)
- 16bit Pan 540°
- 16bit Tilt 270°
- Various strobe effects
- Display: Color display with 4-button function menu

Colors:

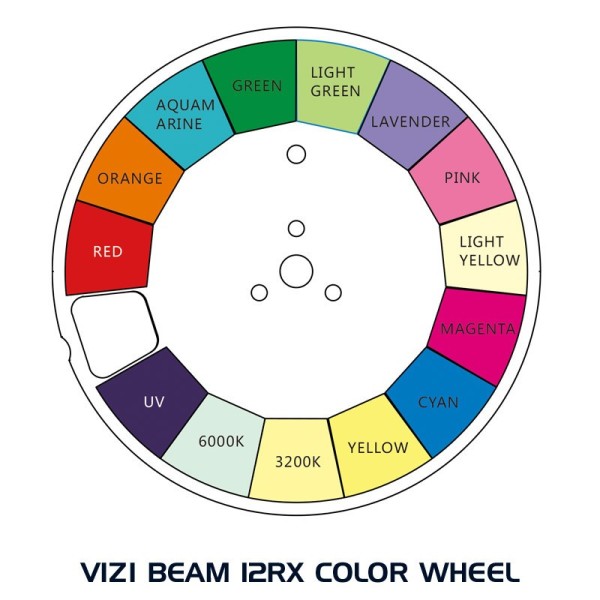

- 1 Color Wheel with 11 colors + CTO + CTB + UV + White
- Split Colors

Gobos:

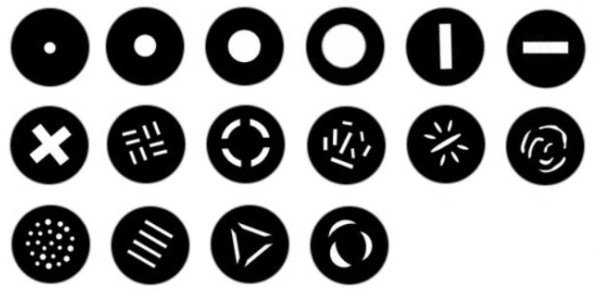

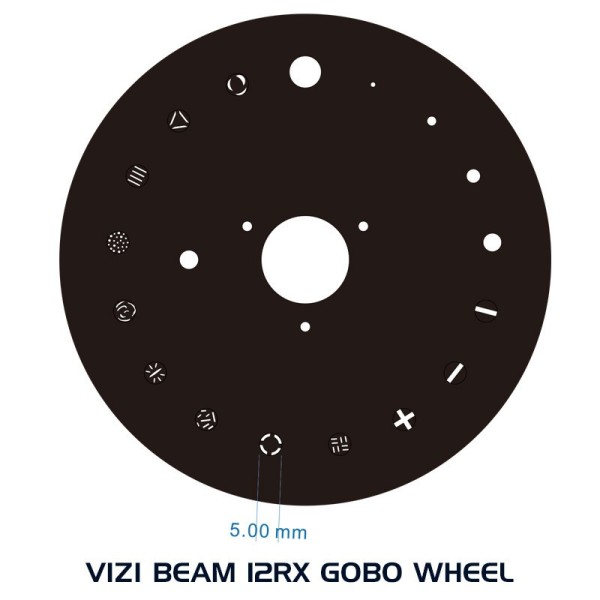

- 1 metal Gobo Wheel with 12 static Gobos + 4 beam reducers + Open

Construction:
- PVC molding
- Includes omega brackets

Electrical:
- Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- Power consumption: 371W

Connections:
- 3 & 5-pin Locking DMX In/Out connections
- IP65 Locking Power In/Out connections
- USB Service Port for software updates

Physical:
- Dimension: 350 x 343.5 x 565mm
- Weight: 18 kg

Further Product Information Below

ADJ Vizi Beam 12RX Manual (PDF)

ADJ Vizi Beam 12RX Data Sheet (PDF)

ADJ Vizi Beam 12RX Photometrics (PDF)
