ADJ RDM XS8 DMX and RDM Data Splitter

Price Each £151.63 (£181.96 Including VAT at 20%)

REF: JP110387

Quantity:

ADJ RDM XS8 DMX and RDM Data Splitter

The ADJ RDM XS8 DMX and RDM Data Splitter is a 19-inch rack mount, 8-way DMX and RDM data splitter. With one 5-pin input, one 5-pin thru and eight 5-pin outputs, the RDM XS8 makes running DMX cables easier and more efficient. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet.

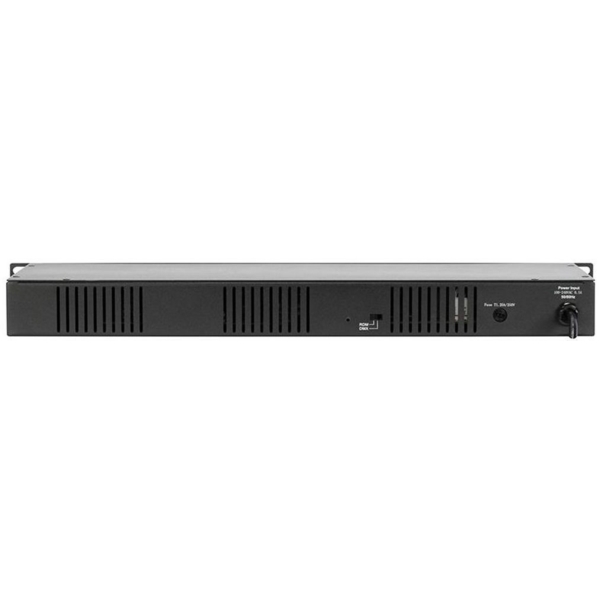

Its slim 1U configuration includes 1x 5-pin XLR input, 1x 5-pin XLR thru, 8x 5-pin XLR outputs, plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.

Click Here for More Info.

ADJ RDM XS8 DMX and RDM Data Splitter Features

- 1x 5-pin XLR Input
- 1x 5-pin XLR Thru
- 8x 5-pin XLR Outputs
- Link Out Termination Switch
- DMX / RDM Protocol Switch
- 19-inch Rack Mount (1 rack space)

ADJ RDM XS8 DMX and RDM Data Splitter Specifications

Protocols:
- DMX512
- RDM

Electrical:
- AC Input: 100-230V 50/60Hz
- Power Consumption: 3.3W @ 230V
- Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)

Thermal:
- Ambient Operational Temperature: -20°C to 45°C
- Humidity: <75%
- Storage Temperature: 25°C

Physical:
- Dimensions (W x H x D): 482 x 44 x 152.4 mm
- Weight: 2.21 kg

Further Product Information Below

ADJ RDM XS8 Manual (PDF)
