ADJ Data Distro 6 DMX Distributor/Booster

Price Each £126.67 (£152.00 Including VAT at 20%)

REF: JP108719

Quantity:

ADJ Data Distro 6 DMX Distributor/Booster

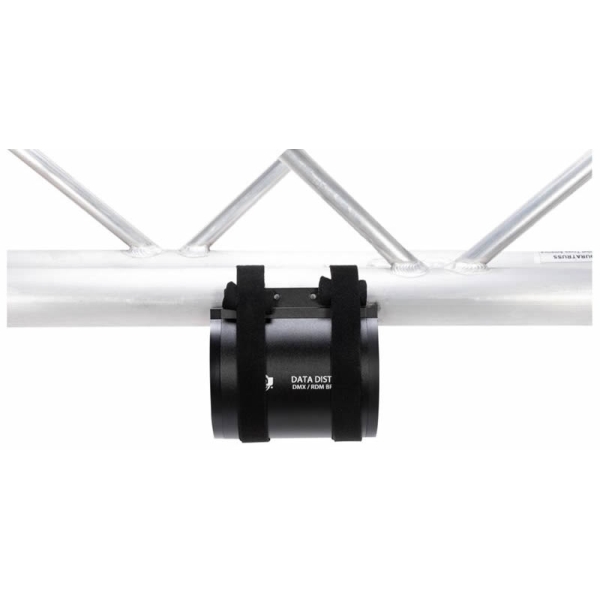

The ADJ Data Distro 6 DMX Distributor/Booster is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient hanging with 1 Truss Mount featuring two Velcro Straps or M10 Screw Clamp (clamp not included). Its robust physical configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, and 6x indoor 5-pin XLR outputs. Equipped with a Link Out Termination Switch and a DMX/RDM Protocol Switch, it also features an indoor locking power socket for added security.

Click Here for More Info.

ADJ Data Distro 6 DMX Distributor/Booster Specifications

Protocols:
- DMX512
- RDM

Physical:
- 1 Truss Mount with Velcro Straps or M10 Screw Clamp (Clamp Not Included)
- 1x Indoor 5pin XLR Input
- 1x Indoor 5pin XLR Thru
- 6x Indoor 5pin XLR Outputs
- Link Out Termination Switch
- DMX / RDM Protocol Switch
- Indoor locking power socket

Electrical:
- AC Input: 100-230V 50/60Hz
- Power Consumption: 2.7W @ 120V and 2.9W @ 230V
- Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)

Thermal:
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Humidity: <75%
- Storage Temperature: 77°F (25°C)

Certification / Qualification:
- CE
- cETLus (Pending)
- FCC
- IP20

Physical:
- Dimensions (W x H x D): 137.75 x 129.55 x 120 mm
- Weight: 0.83 kg

Further Product Information Below

ADJ Data Distro 6 Manual (PDF)
